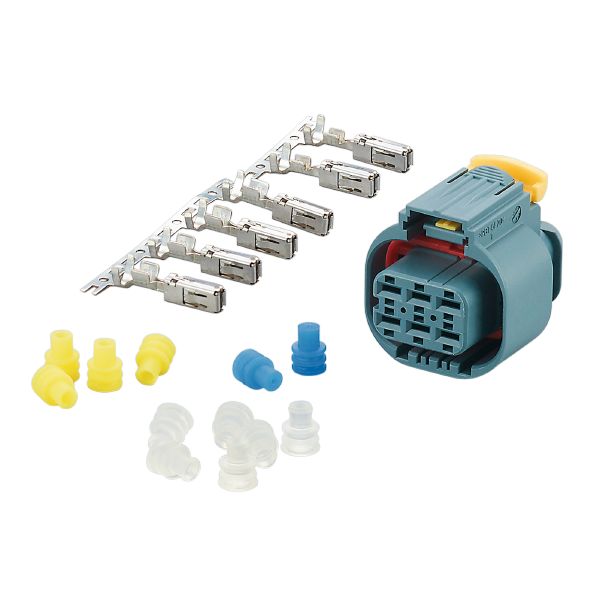

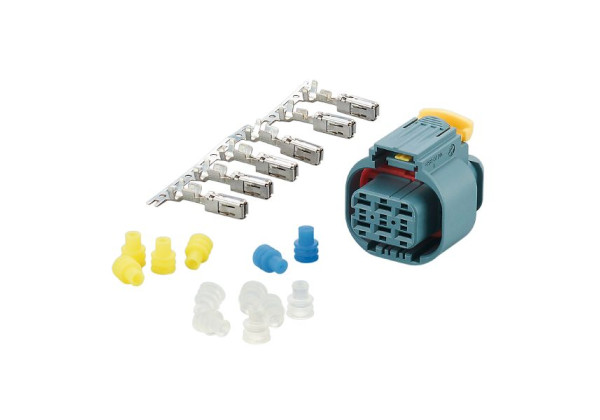

E12582 Wirable AMP socket SDOGV060--AFKCR
Brand: IFM Electronic
Code: E12582
Electrical data
| Operating voltage [V] | 12...24 DC |
|---|
Operating conditions
| Ambient temperature [°C] | -40...100 |
|---|---|
| Ambient temperature (moving) [°C] | -40...100 |
| Protection | IP 67; (mating connector plugged in) |
Mechanical data
| Weight [g] | 14 |
|---|---|
| Dimensions [mm] | 29.8 x 26.4 x 31.5 |
| Materials | socket housing: PBT; Contacts: nickel-plated |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| terminals: 2 x 0.5 mm² |
Electrical connection - socket
| Connection | Connector: 1 x AMP connector, straight; Contacts: nickel-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12582-01 — 13.07.2020 —
