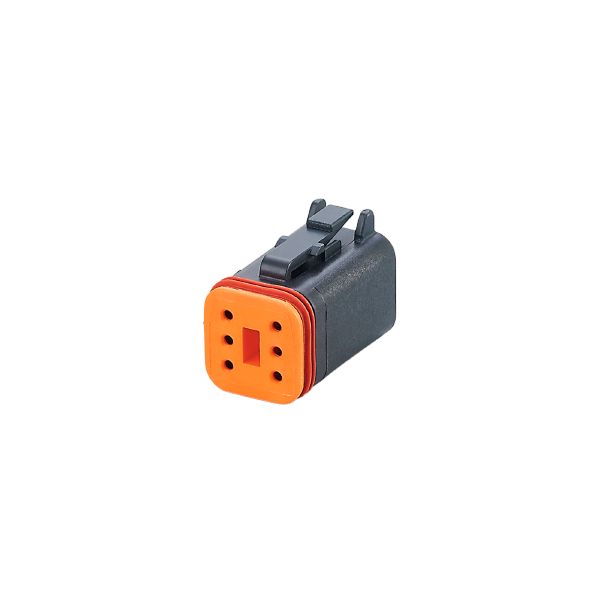

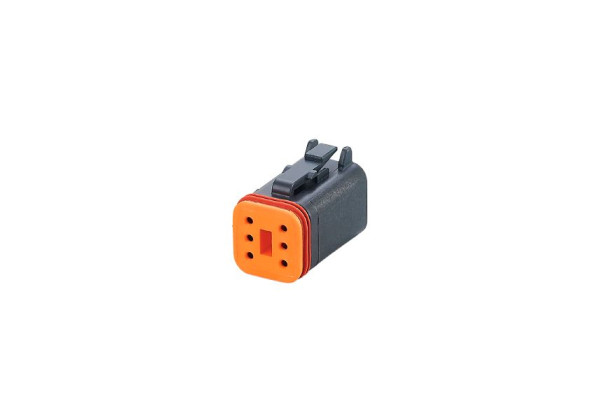

E12583 Wirable socket SDOGS060--AFKCR
Brand: IFM Electronic
Code: E12583
- For use in mobile machines and vehicles
- Wide operating temperature range
- DEUTSCH connector for the fast and easy connection to the on-board system
- High protection rating for the requirements of harsh industrial environments
Application
| Special feature | Free from silicone |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | 8...32 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 4; (...40 °C) |
Operating conditions
| Ambient temperature [°C] | -40...80 |
|---|---|
| Ambient temperature (moving) [°C] | -20...80 |
| Protection | IP 67; (mating connector plugged in) |
Mechanical data
| Weight [g] | 15.1 |
|---|---|
| Materials | brass nickel-plated; PA |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | 6 x 0.5 mm² |
|---|---|
| Connection | Connector: 1 x DEUTSCH connector (DT-06-6S-CE02) |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12583-00 — 21.11.2017 —
