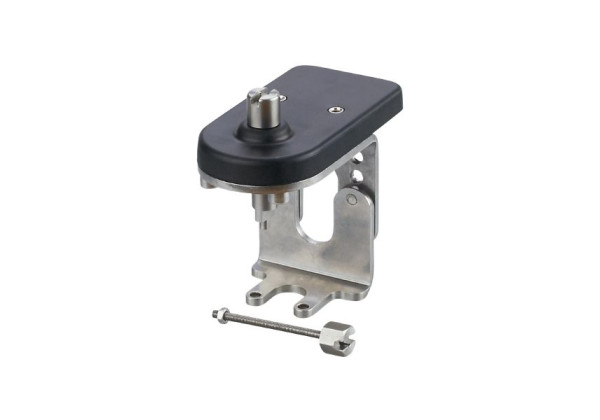

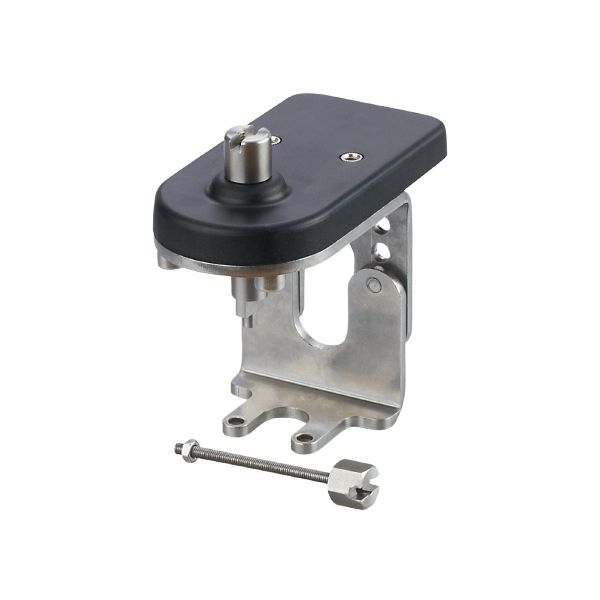

E12588 Mounting set for manual valves and ball valves MOUNTING KIT FOR MANUAL VALVES F03/M4
Brand: IFM Electronic
Code: E12588
- For the reliable limit position feedback of manual valves and ball valves
- Suitable for a large variety of ISO top flange fittings
- Easy mounting and safe fixing
- For applications in hazardous areas
- Robust stainless steel design for use in harsh industrial environments
Application
| Design | for types IND, INE |
|---|
Operating conditions
| Ambient temperature [°C] | -30...80 |
|---|
Mechanical data
| Weight [g] | 459 |
|---|---|
| Top flange diameter [mm] | 36 |
| ISO top flange type | F03 |
| Shaft extension | M4 |
| Materials | Mounting plate: plastics; metal parts: stainless steel (1.4301 / 304) |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12588-00 —
