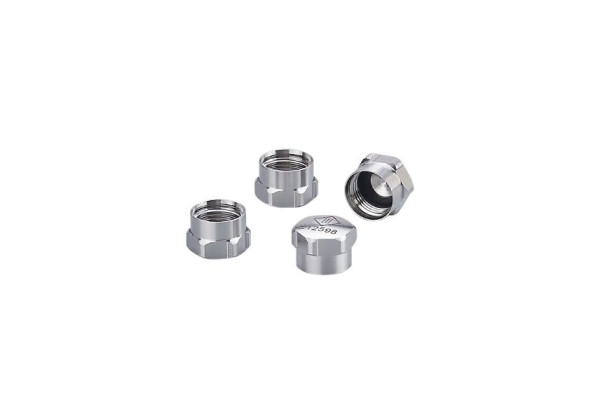

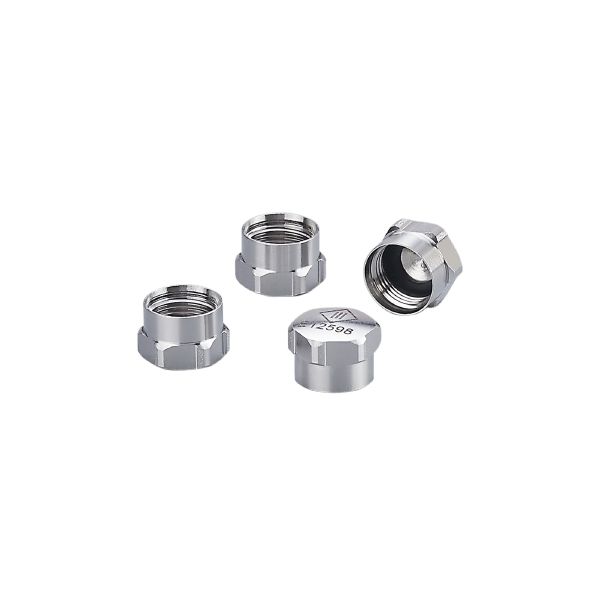

E12598 Protective cap Protective cap male M12 V4A 4pcs.
Brand: IFM Electronic
Code: E12598
Application
| Design | for hygienic and wet areas in the food industry |
|---|---|
| Installation | Use only with protection class III devices |
Operating conditions
| Ambient temperature [°C] | -25...100 |
|---|---|
| Protection | IP 65; IP 67; IP 69K |
Mechanical data
| Weight [g] | 21.5 |
|---|---|
| Dimensions [mm] | M12 x 1 |
| Thread designation | M12 x 1 |
| Materials | end caps: stainless steel (1.4404 / 316L); Sealing: EPDM |
| Tightening torque [Nm] | 0.6...1.2; (Take into account the maximum value of the counterpart!) |
Remarks
| Pack quantity | 4 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12598-00 — 06.07.2018 —
