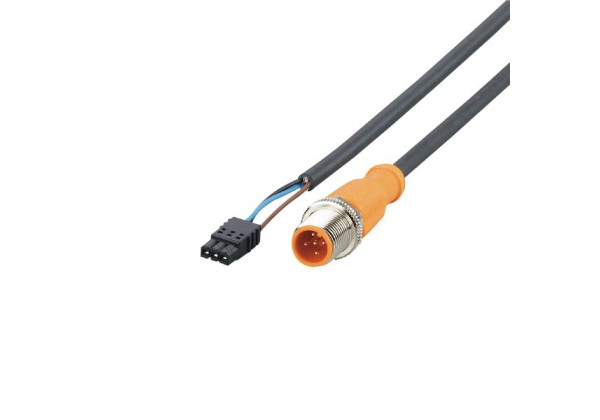

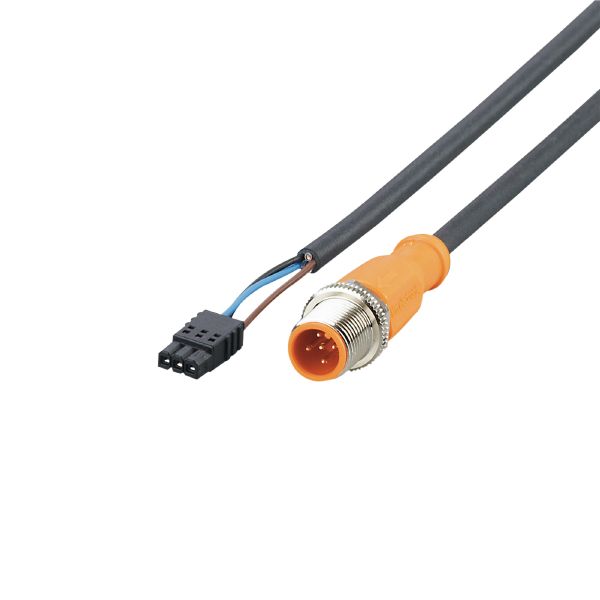

E12613 Connection cable ASTGH030MSS00,5H03
Brand: IFM Electronic
Code: E12613
Application
| Special feature | Free from silicone; Halogen-free |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 50 AC/DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Ambient temperature (moving) [°C] | -25...90 |
| Protection | IP 65 |
Mechanical data
| Weight [g] | 30.5 |
|---|---|
| Materials | housing: TPU orange; Lock nut: nickel-plated brass |
| Tightening torque [Nm] | 0.6...1.5 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12613-00 — 05.11.2020 —
