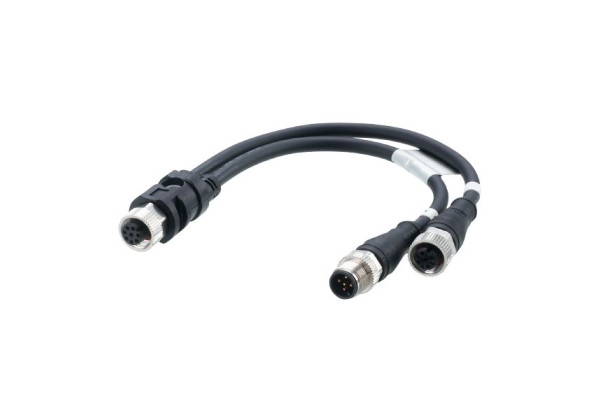

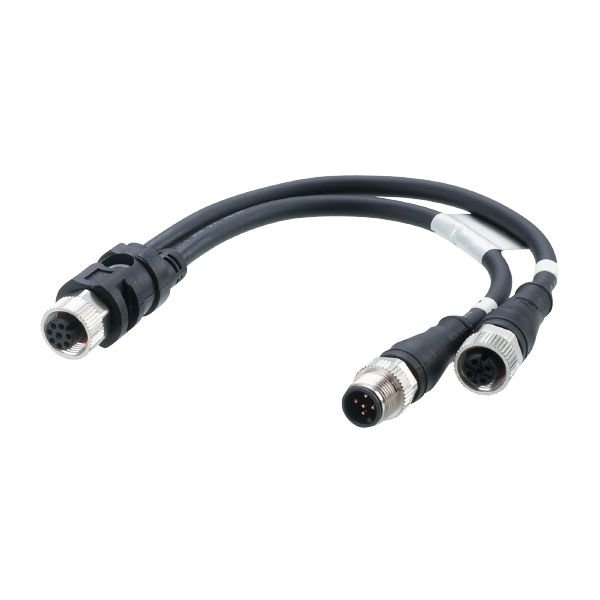

E12640 Y connection cable Y SPLITTER CABLE
Brand: IFM Electronic
Code: E12640
Application
| Special feature | Free from silicone |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 30 AC / < 36 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 2 |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 51.88 |
|---|---|
| Moulded-body material | TPU |
| Material nut | brass, nickel-plated |
| Sealing material | FPM |
| Number of ports splitter box | 2 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - socket C
| Connector: 1 x M12; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Sealing: FPM; Tightening torque: 1 Nm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12640-01 — 12.10.2023 —
