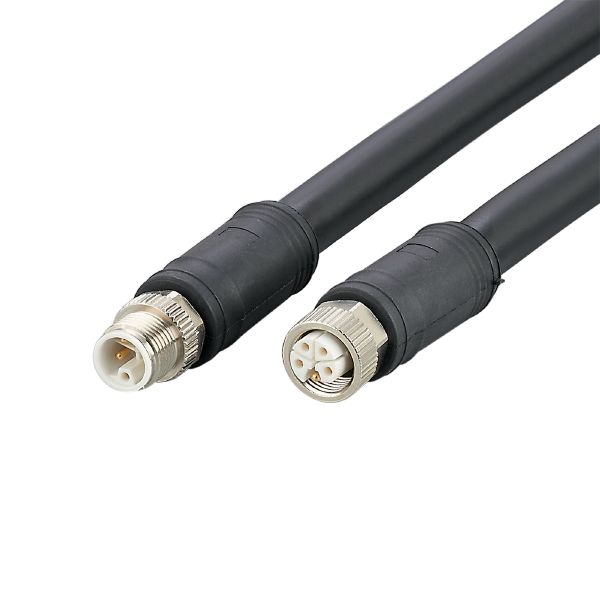

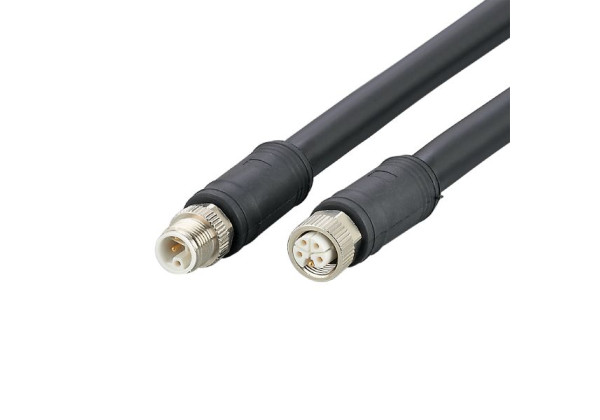

E12652 Connection cable VDOGX050MSS00,5H05STGH005MSS
Brand: IFM Electronic
Code: E12652
Application
| Special feature | Gold-plated contacts |
|---|---|
| Design | power cable, L-coded |
Electrical data
| Operating voltage [V] | 64 DC |
|---|---|
| Max. current load total [A] | 16 |
Operating conditions
| Ambient temperature [°C] | -40...90 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 139.8 |
|---|---|
| Materials | PP |
| Moulded-body material | TPE |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 0.5 m, PUR, black, Ø 11.3 mm; 5 x 2.5 mm² |
Electrical connection - plug
| Connector: 1 x M12, straight; coding: L; Moulded body: TPE; Locking: brass, nickel-plated; Contacts: gold-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12652-00 — 13.11.2019 —
