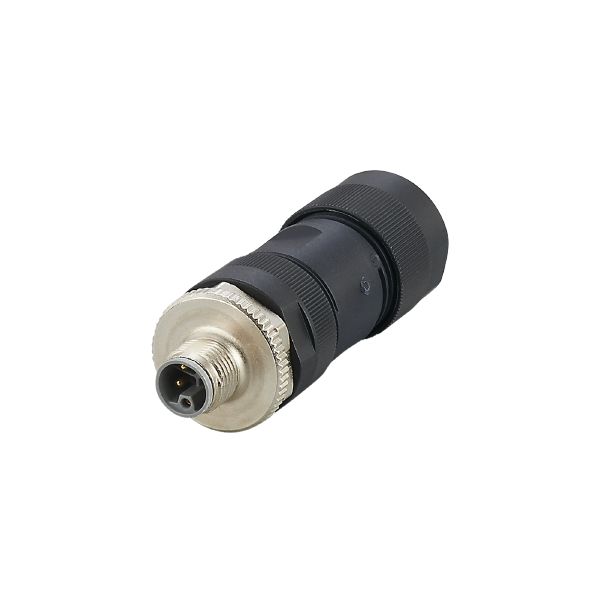

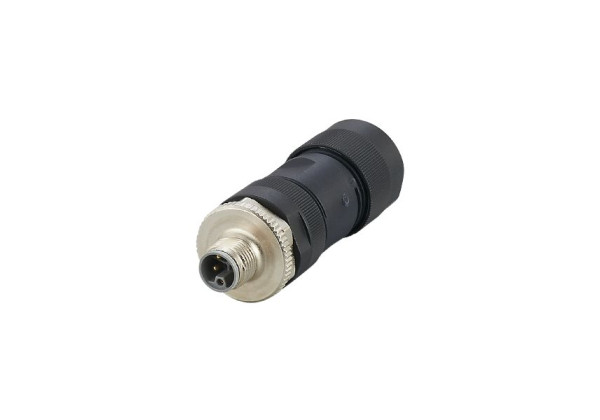

E12673 Wirable plug SSTGX050ZDSFKPG
Brand: IFM Electronic
Code: E12673
Application
| Special feature | Gold-plated contacts |
|---|---|
| Design | L-coded |
Electrical data
| Operating voltage [V] | < 63 DC |
|---|---|
| Max. current load total [A] | 16 |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 43.05 |
|---|---|
| Dimensions [mm] | Ø 25 / L = 76 |
| Materials | PA |
| Moulded-body material | PA |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| screw terminals: 1.5...2.5 mm²; Cable sheath: Ø 8...13 mm |
Electrical connection - plug
| Connection | Connector: 1 x M12, straight; coding: L; Moulded body: PA; Locking: diecast zinc, nickel-plated; Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12673-00 — 05.07.2019 —
