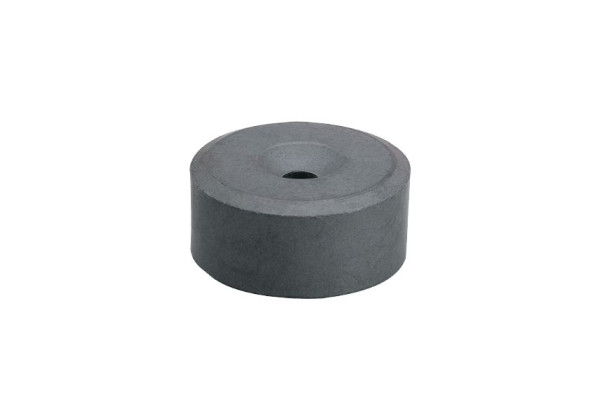

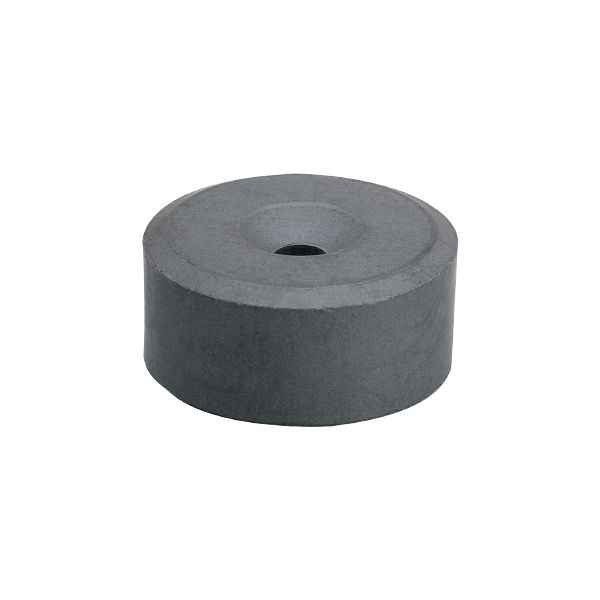

E12709 Damping magnet MAGNET M5.0 IATA E10753 5X
Brand: IFM Electronic
Code: E12709
- IATA compliant packaging
- For use in combination with magnetic sensors
- For ensuring a long sensing range
- Wide operating temperature range
Operating conditions
| Ambient temperature [°C] | -25...250 |
|---|
Mechanical data
| Weight [g] | 325.7 |
|---|---|
| Dimensions [mm] | Ø 31 / L = 15 |
| Materials | hard ferrite HF 26/22 |
| Magnetic field strength [mT] | 120 |
Remarks
| Pack quantity | 5 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12709-00 — 10.10.2013 —
