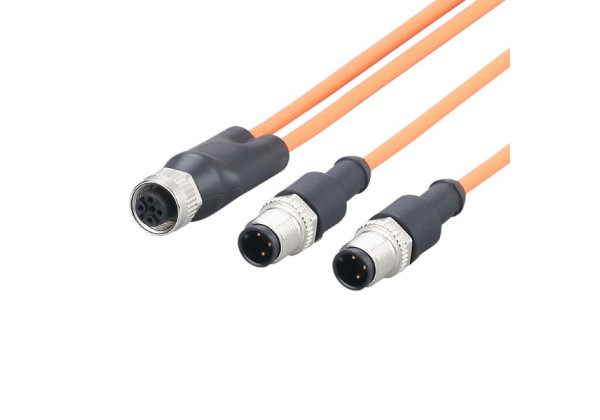

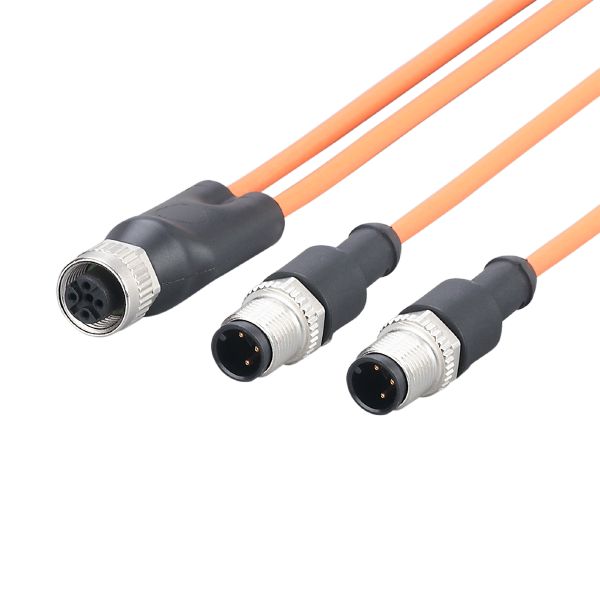

E12723 Y connection cable Y SPLITTER CABLE/M12 SOCKET/2xM12 PLUG
Brand: IFM Electronic
Code: E12723
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 25 AC / < 60 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 2 |
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 65; IP 67 |
Mechanical data
| Weight [g] | 52 |
|---|---|
| Moulded-body material | TPU |
| Material nut | diecast zinc, nickel-plated |
| Sealing material | FKM |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 0.3 m, PUR, Halogen-free, orange, Ø 4.0 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm ) |
Electrical connection - socket C
| Connector: 1 x M12, straight; coding: A; Moulded body: TPU, black; Locking: diecast zinc, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12723-00 — 21.10.2022 —
