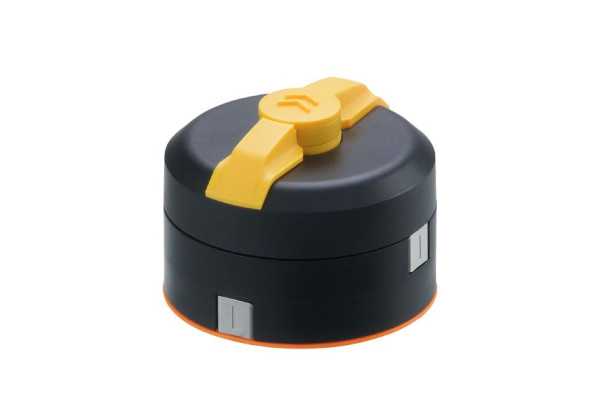

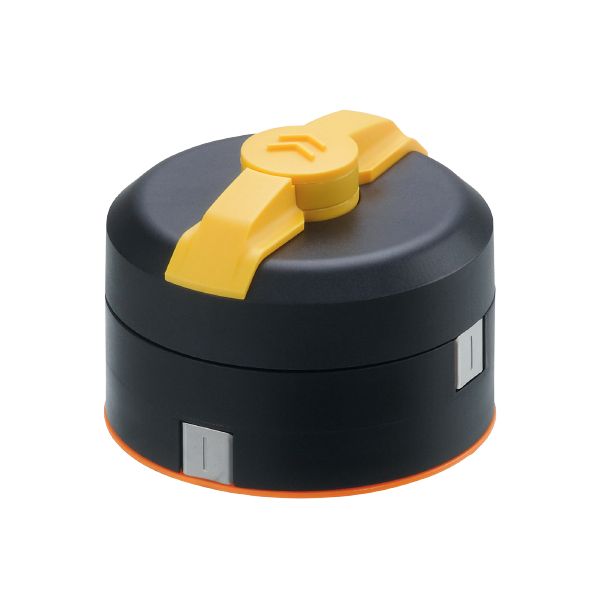

E12724 Target puck for valve actuators PUCK 65MM BASIC
Brand: IFM Electronic
Code: E12724
- For monitoring valve positions
- For reliable position feedback on valve actuators
- Easy mounting directly on the shaft of the drive
- Non-contact and self-cleaning system
- Selectable position of the damping screws
Application
| Design | for mechanical interfaces to pneumatic actuators or manually-operated valves VDI / VDE 3845, ISO 5211 / DIN 3337 |
|---|
Mechanical data
| Weight [g] | 79.8 |
|---|---|
| Target puck diameter [mm] | 65.6 |
| Hole spacing [mm] | 80 |
| Shaft height of valve drive [mm] | 30 |
| Materials | target puck: PA 6 black; metal parts: stainless steel; Position indicator: PA 6 yellow |
| Tightening torque [Nm] | 2.5...3 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12724-00 — 09.11.2020 —
