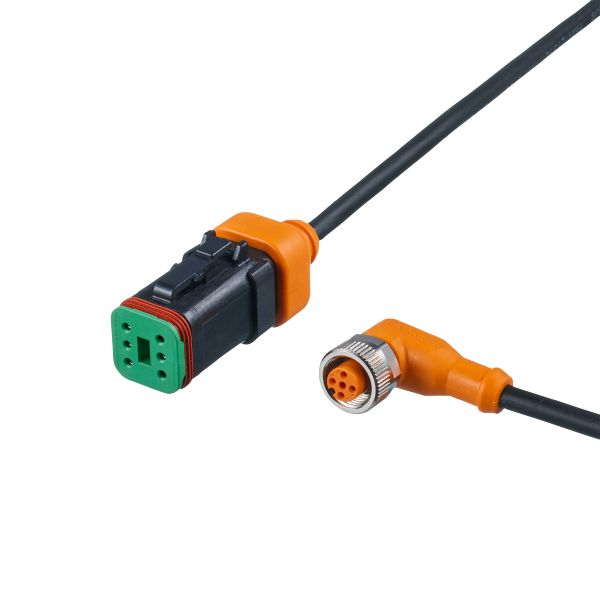

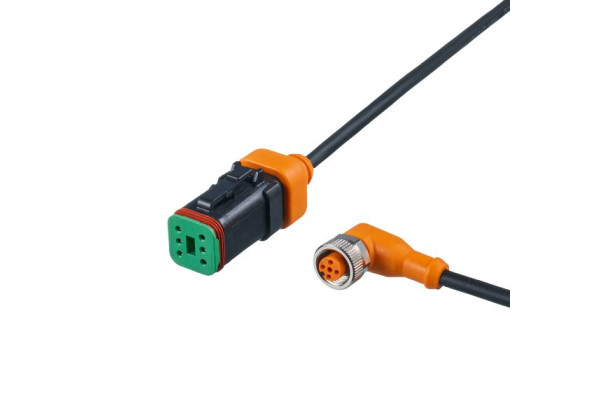

E12728 Connection cable VDOGS040--S0001H04DOAH040MSS
Brand: IFM Electronic
Code: E12728
Application
| Special feature | Free from silicone; Halogen-free; Drag chain suitability |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | 8...32 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -40...80 |
|---|---|
| Ambient temperature (moving) [°C] | -20...80 |
| Protection | IP 67; (mating connector plugged in) |
Mechanical data
| Weight [g] | 93.2 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Materials | PA; socket: TPU orange; Sealing: FKM | ||||||||
| Material nut | brass, nickel-plated | ||||||||
| Drag chain suitability | yes | ||||||||
| Drag chain suitability |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - socket
| Connector: 1 x DEUTSCH connector, straight |
Electrical connection
| Connection | Cable: 1 m, PUR, Halogen-free, black, Ø 5.4 mm; 4 x 0.50 mm² (28 x Ø 0.15 mm ) |
|---|
Electrical connection - socket
| Connector: 1 x M12, angled; coding: A; Locking: brass, nickel-plated; Tightening torque: 0.6...1.5 Nm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12728-00 — 07.10.2020 —
