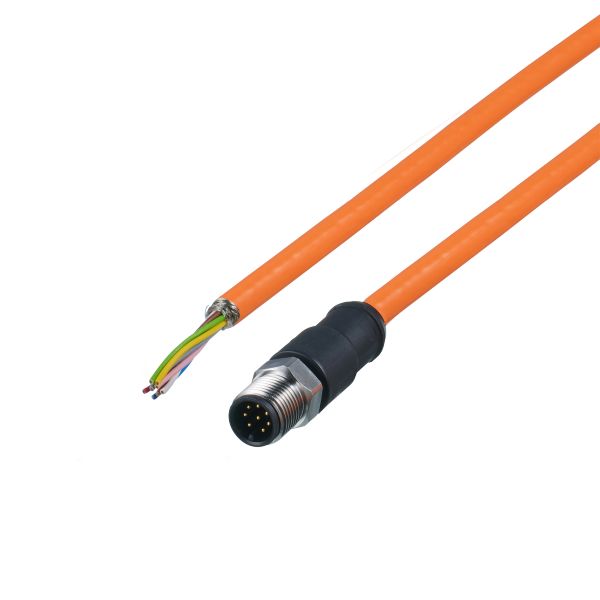

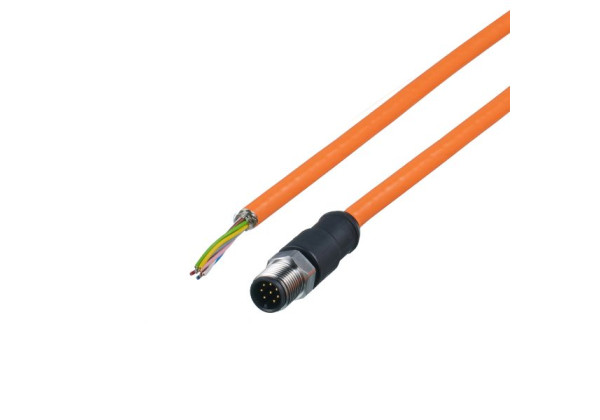

E12732 Connecting cable with plug ASTGH080VAS0010G08
Brand: IFM Electronic
Code: E12732
- High protection rating for the requirements of the food and beverage industry
- Permanent, reliable sealing even when mounted without tools
- Wide operating temperature range
- Good electromagnetic compatibility thanks to shielded cable
- Angled type for use where space is restricted
Application
| Special feature | Screened cable |
|---|
Electrical data
| Operating voltage [V] | < 30 AC / < 36 DC |
|---|---|
| Protection class | III |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 678.9 |
|---|---|
| Dimensions [mm] | 26.5 x 15 x 38.5 |
| Materials | PVC |
| Moulded-body material | PVC |
| Material nut | stainless steel |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 10 m, PVC, orange, Ø 6.6 mm, shielded; 8 x 0.25 mm² (14 x Ø 0.15 mm ) |
Electrical connection - plug
| Connection | Connector: 1 x M12, straight; coding: A; Moulded body: PVC; Locking: stainless steel; Tightening torque: 0.7...0.9 Nm; Shielded connection cable: screen connected |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12732-00 — 23.07.2020 —
