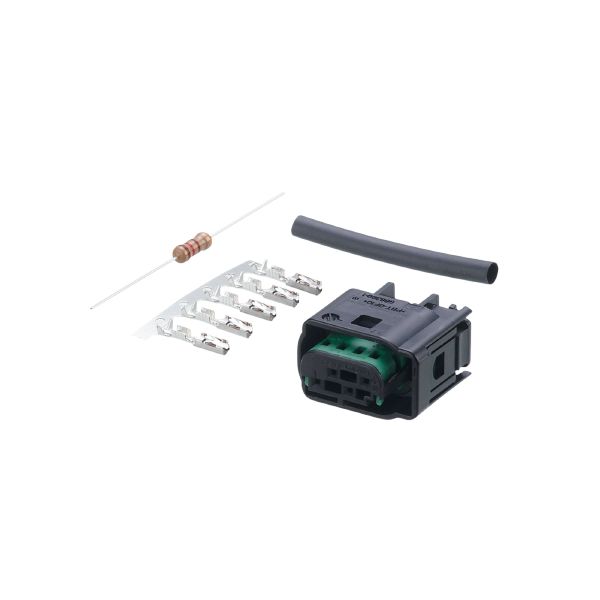

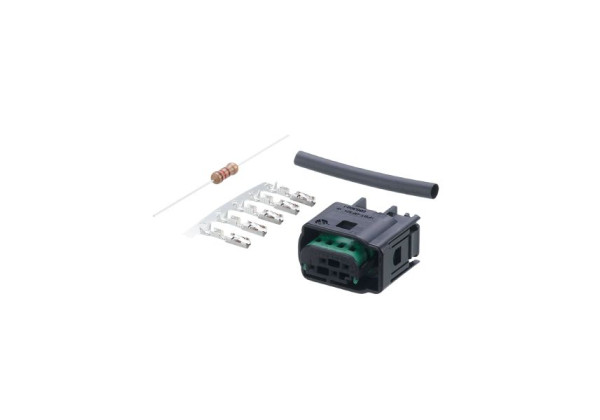

E12737 Wirable socket ecomatPanel/Connection Set
Brand: IFM Electronic
Code: E12737
Electrical data
| Operating voltage [V] | 8...32 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -40...80 |
|---|---|
| Protection | IP 20; (without resistor) |
Mechanical data
| Weight [g] | 10 |
|---|---|
| Dimensions [mm] | 15.3 x 23.2 x 24.2 |
| Materials | housing: PBT-GF20 |
| Moulded-body material | PBT |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | 5 x 0.5...0.75 mm² |
|---|---|
| Connection | Connector: AMP MQS, straight; Moulded body: PBT; Contacts: tin-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12737-00 — 09.11.2020 —
