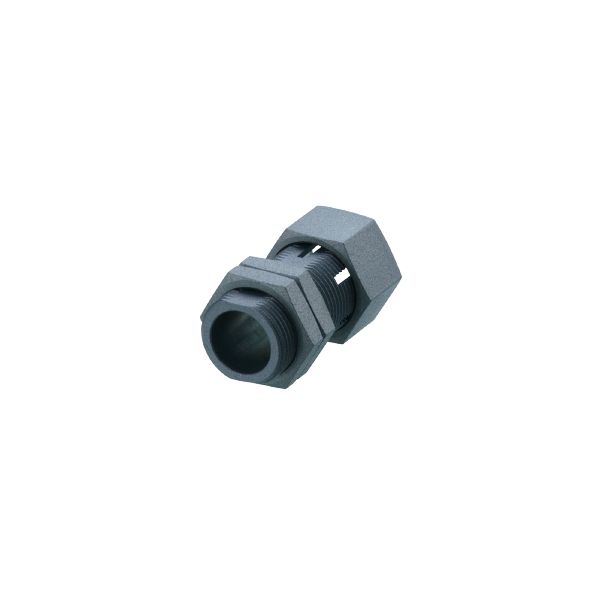

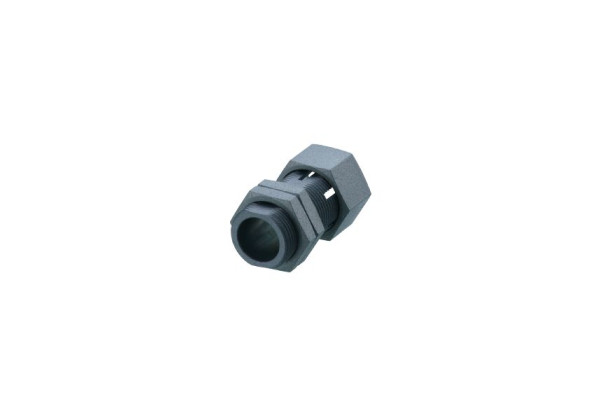

E12754 Mounting sleeve with end stop FIXING/M12/NT/FE/COATED/END ST
Brand: IFM Electronic
Code: E12754
- End stop for defined installation position
- For mounting cylindrical sensors
- Easy and quick replacement without readjustment
- Reliable protection against damage
- Resistant to weld slag thanks to non-stick coating
Application
| Special feature | anti-spatter |
|---|---|
| Design | with end stop |
Mechanical data
| Weight [g] | 34.5 |
|---|---|
| Installation instruction | align the sensing face of the sensor to the right (see scale drawing) |
| Dimensions [mm] | M16 x 1 |
| Thread designation | M16 x 1 |
| Inside diameter [mm] | 12 |
| Materials | steel galvanised; anti-spatter; lock nuts: steel galvanised; anti-spatter |
| Tightening torque [Nm] | 5; (lock nuts: 20) |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Diagrams and graphs
| Installation | |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12754-00 — 17.03.2023 —
