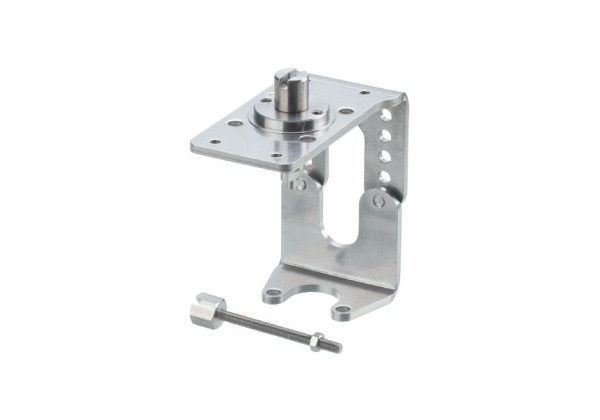

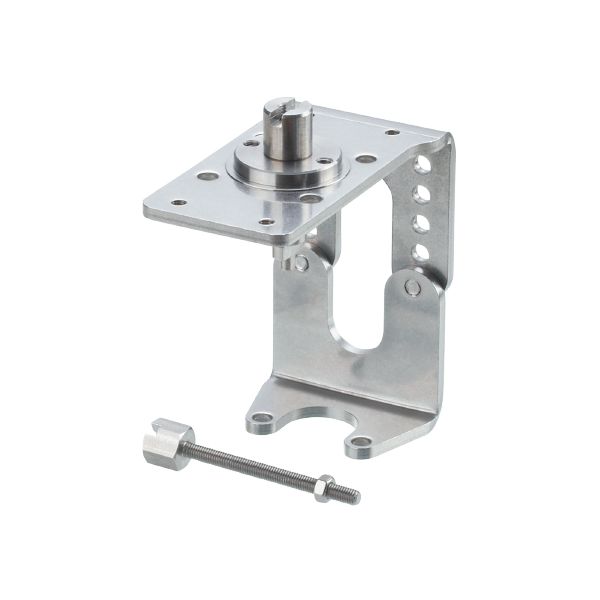

E12768 Mounting set for manual valves and ball valves MOUNTING KIT F. MANUAL VALVES MVQ F05/M5
Brand: IFM Electronic
Code: E12768
- For the reliable limit position feedback of manual valves and ball valves
- Easy mounting and safe fixing
- Robust stainless steel design for use in harsh industrial environments
- Suitable for a large variety of ISO top flange fittings
Operating conditions
| Ambient temperature [°C] | -30...80 |
|---|
Mechanical data
| Weight [g] | 471.9 |
|---|---|
| Top flange diameter [mm] | 50 |
| ISO top flange type | F05 |
| Shaft extension | M5 |
| Materials | metal parts: stainless steel (1.4301 / 304) |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12768-00 — 17.08.2021 —
