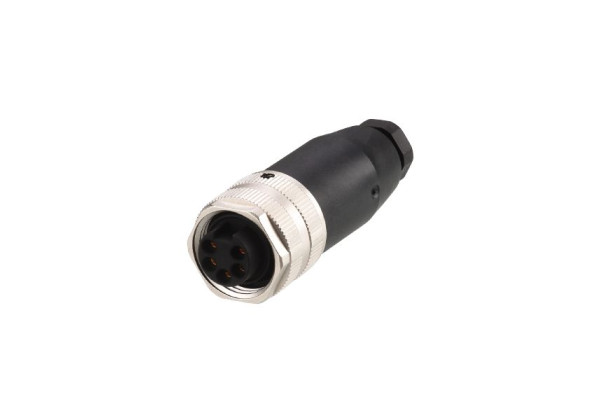

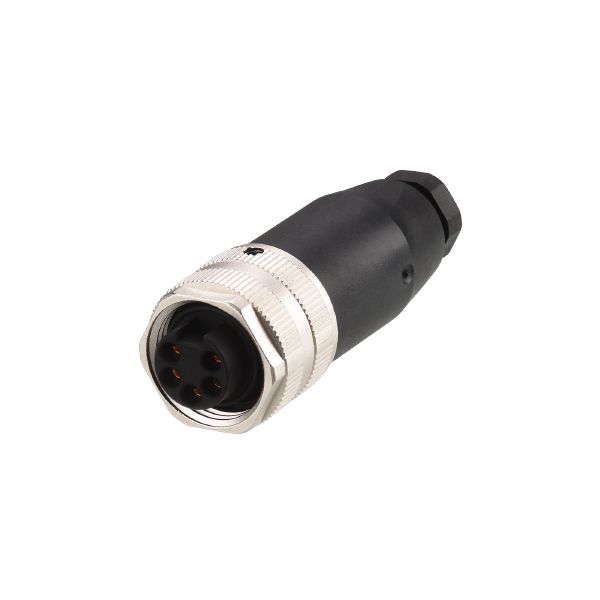

E12774 Wirable socket SDOGB050ZDSFKPG
Brand: IFM Electronic
Code: E12774
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 300 AC/DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 9 |
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 48.808 |
|---|---|
| Moulded-body material | PBT |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| screw terminals:...1.5 mm²; Cable sheath: Ø 6...8 mm; AWG 16 |
Electrical connection - socket
| Connection | Connector: 1 x 7/8", straight; Moulded body: PBT; Locking: diecast zinc, nickel-plated; Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12774-00 — 27.07.2023 —
