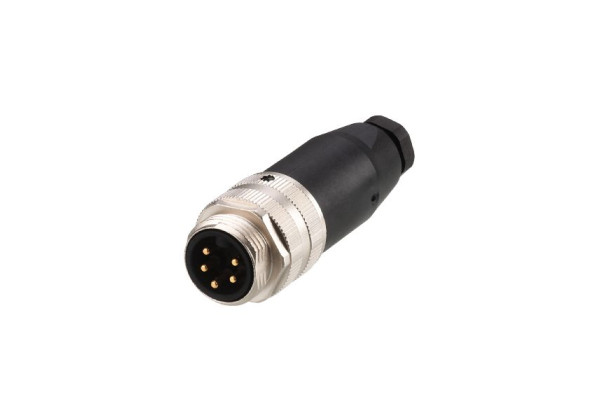

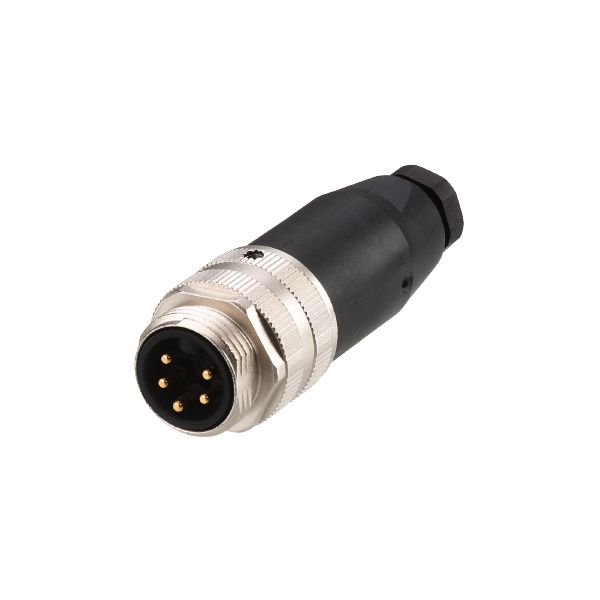

E12776 Wirable plug SSTGB050ZDSFKPG
Brand: IFM Electronic
Code: E12776
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | < 300 AC/DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 9 |
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 54.7 |
|---|---|
| Moulded-body material | PBT |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| screw terminals:...1.5 mm²; Cable sheath: Ø 6...8 mm; AWG 16 |
Electrical connection - plug
| Connection | Connector: 1 x 7/8", straight; Moulded body: PBT; Locking: diecast zinc, nickel-plated; Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12776-00 — 27.07.2023 —
