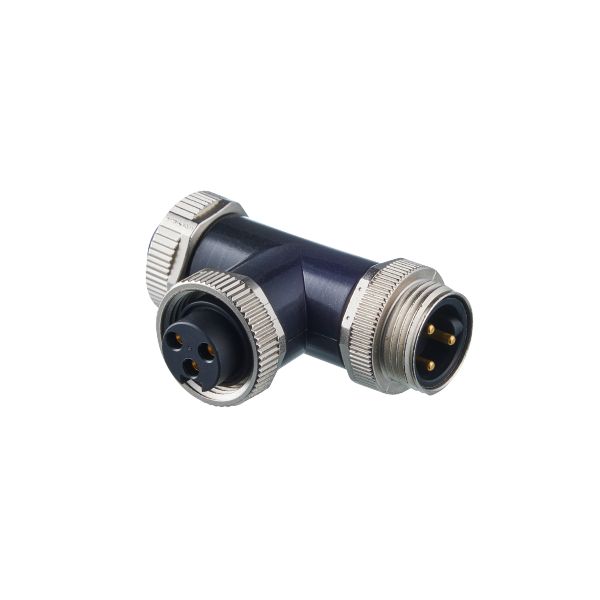

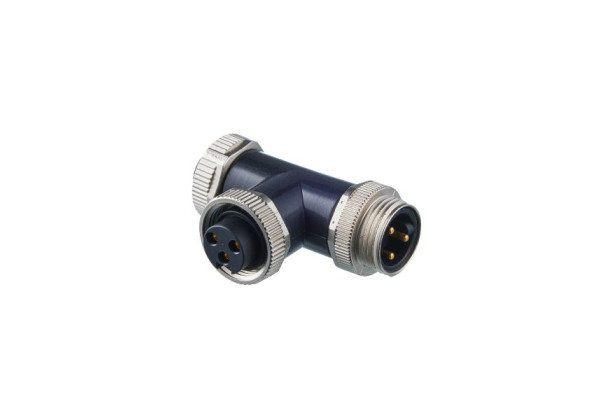

E12777 T-splitter ZDO2B030ZDS0000-00STGB030ZDS
Brand: IFM Electronic
Code: E12777
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | < 300 AC/DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 10 |
Operating conditions
| Ambient temperature [°C] | -30...85 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 71.25 |
|---|---|
| Material nut | diecast zinc |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug A
| Connector: 7/8"; Locking: diecast zinc; Contacts: gold-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12777-00 — 04.10.2022 —
