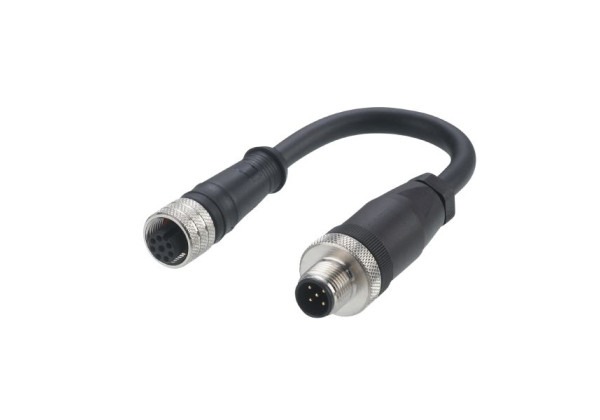

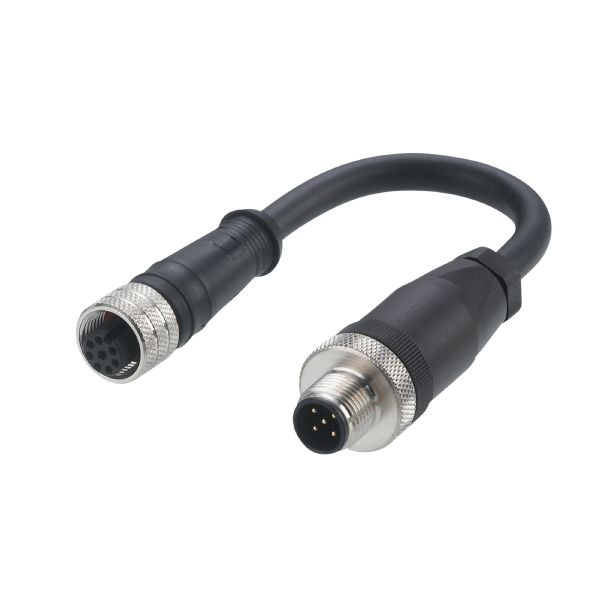

E12784 Connection cable VDOGH080MSS00,1H04STGH040MSS
Brand: IFM Electronic
Code: E12784
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts |
|---|---|
| Application | use on safety light grids and PROFIsafe IO-Link modules |
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 36 DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 2; (...40 °C) |
Operating conditions
| Protection | IP 67 |
|---|
Mechanical data
| Weight [g] | 47 |
|---|---|
| Moulded-body material | PA / TPU |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12, straight; coding: A; Moulded body: PA, black; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...0.7 Nm |
Electrical connection
| Connection | Cable: 0.1 m, PUR, Halogen-free, black, Ø 6.6 mm; 8 x 0.25 mm² |
|---|
Electrical connection - socket
| Connector: 1 x M12, straight; coding: A; Moulded body: TPU, black; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12784-00 — 07.07.2022 —
