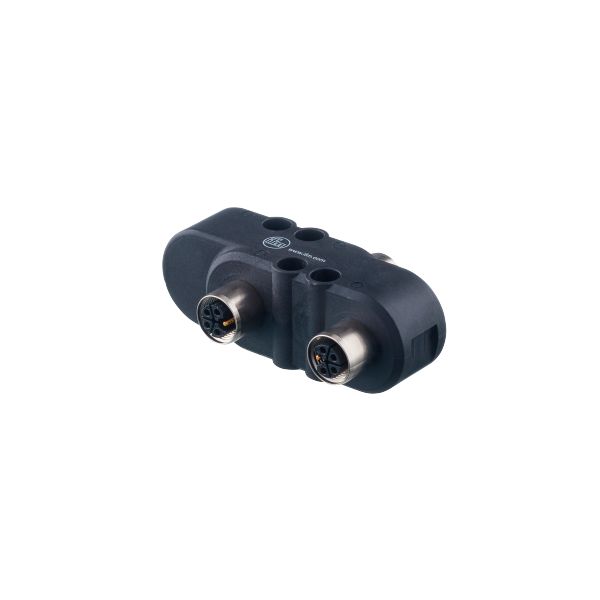

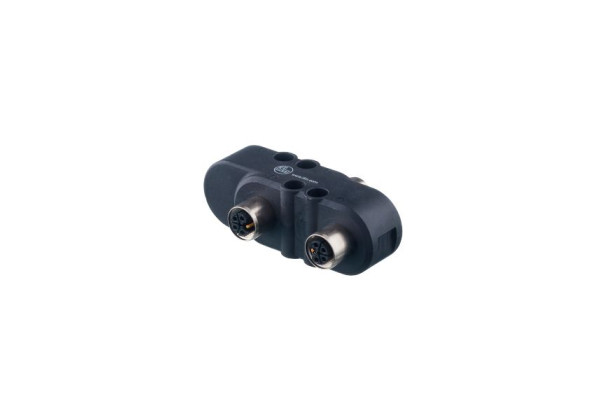

E12789 H splitter ZDO3E050MSS0000-00STGE050MSS
Brand: IFM Electronic
Code: E12789
- Large cable cross-section for reducing the voltage drop and transferring higher currents
- Resistant to oils and coolants
- Permanent, reliable sealing even when mounted without tools
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | < 63 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 16; (40 °C) |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight [g] | 130.7 |
|---|---|
| Moulded-body material | PBT |
| Material nut | brass, nickel-plated |
| Sealing material | HNBR |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: L; Moulded body: PBT, black; Locking: brass, nickel-plated; Contacts: gold-plated |
|---|
Electrical connection - socket
| Connector: 3 x M12; coding: L; Moulded body: PBT, black; Locking: brass, nickel-plated; Sealing: HNBR; Contacts: gold-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12789-00 — 20.07.2023 —
