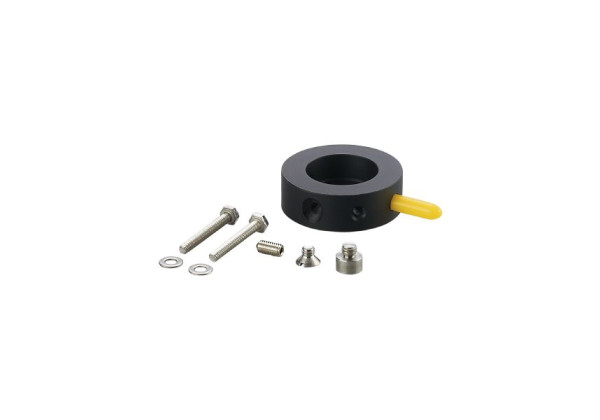

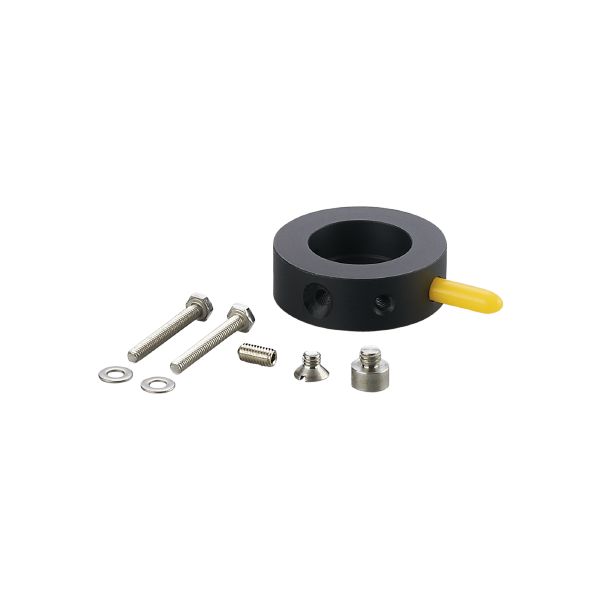

E17002 - efector180-PUCK/IND/33
Brand: IFM Electronic
Code: E17002
- For monitoring valve positions
- For reliable position feedback on valve actuators
- Easy mounting directly on the shaft of the drive
- Non-contact and self-cleaning system
- Indication of valve position by coloured direction indicators
Application
| Design | for butterfly valve |
|---|
Mechanical data
| Weight [g] | 35 |
|---|---|
| Target puck diameter [mm] | 45 |
| Materials | target puck: PVC; pointer: PVC; screws: stainless steel (1.4404 / 316L); washers: stainless steel (1.4404 / 316L); set screw: stainless steel (1.4305 / 303); locking pin: stainless steel (1.4301 / 304) |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E17002-00 — 06.03.2003 —
