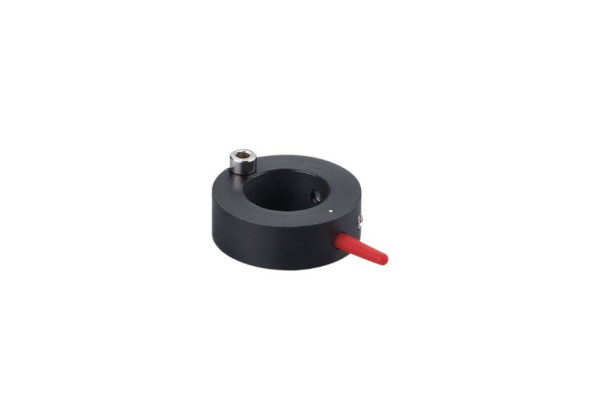

E17013 - PUCK D48 +90/-0 / W25
Brand: IFM Electronic
Code: E17013
- For monitoring valve positions
- For reliable position feedback on valve actuators
- Easy mounting directly on the shaft of the drive
- Non-contact and self-cleaning system
- Selectable position of the damping screws
Application
| Design | for butterfly valve |
|---|
Mechanical data
| Weight [g] | 29 |
|---|---|
| Target puck diameter [mm] | 48 |
| Materials | target puck: PA 6; pointer: silicone RAL 3020; counter-sunk screw: stainless steel (1.4305 / 303); head cap screw: stainless steel (1.4301 / 304); set screw: $1_4301; locking pin: stainless steel (1.4301 / 304) |
| Tightening torque [Nm] | 2; (screws) |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E17013-00 — 25.08.2015 —
