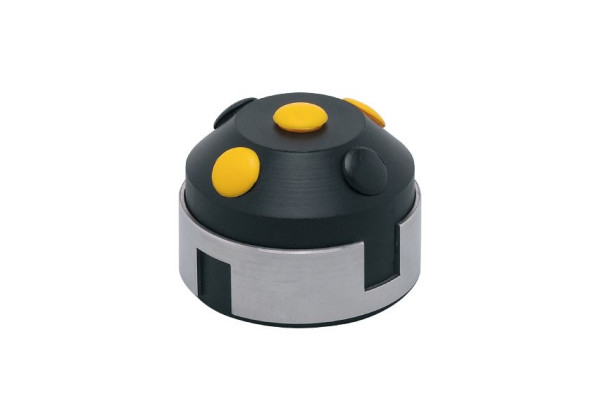

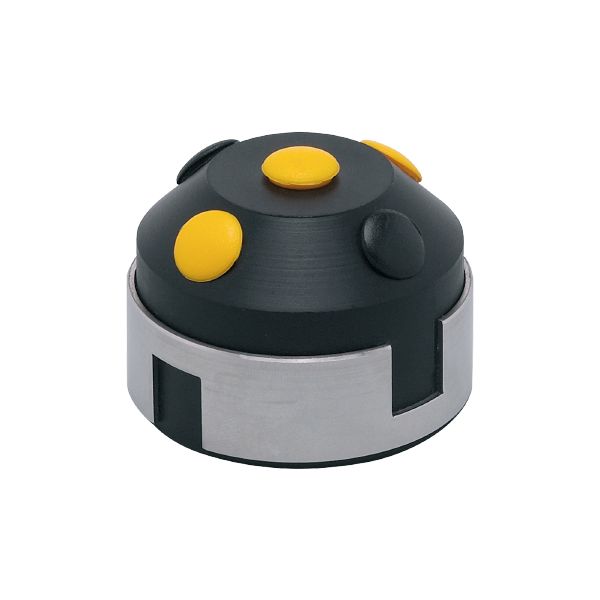

E17205 - efector180-PUCK/INVERTED FUNCTION
Brand: IFM Electronic
Code: E17205
- For monitoring valve positions
- For reliable position feedback on valve actuators
- Easy mounting directly on the shaft of the drive
- Non-contact and self-cleaning system
- Indication of valve position by coloured direction indicators
Application
| Design | for mechanical interfaces to pneumatic actuators or manually-operated valves VDI / VDE 3845, ISO 5211 / DIN 3337 |
|---|
Mechanical data
| Weight [g] | 117.5 |
|---|---|
| Target puck diameter [mm] | 55 |
| Hole spacing [mm] | 80 |
| Shaft height of valve drive [mm] | 20 |
| Materials | target puck: PVC black; screws: stainless steel; metal ring: stainless steel |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E17205-00 — 07.08.2017 —
