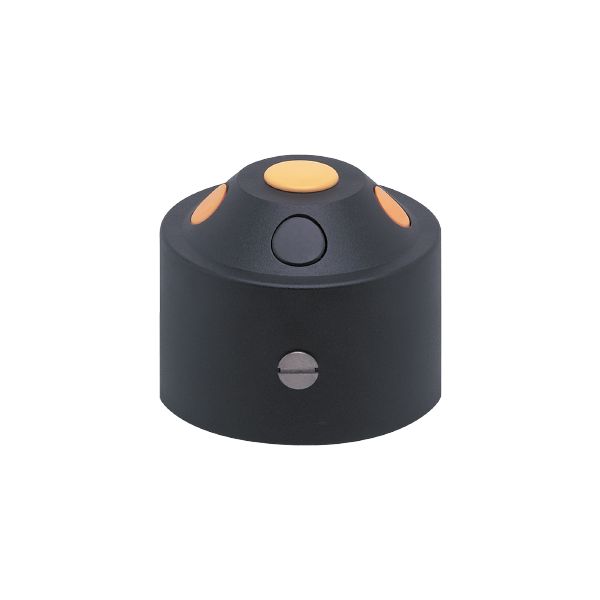

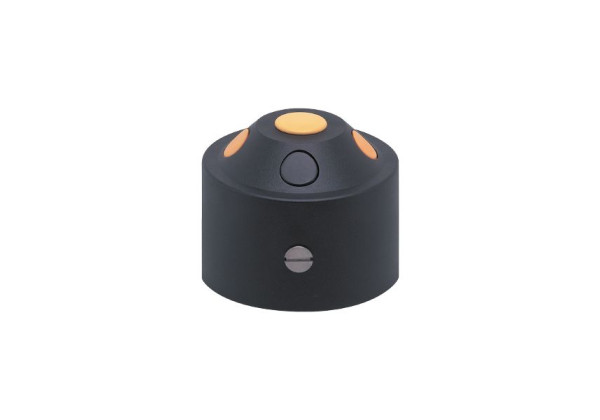

E17327 - efector180-PUCK/IND/8 PA6
Brand: IFM Electronic
Code: E17327
- For monitoring valve positions
- For reliable position feedback on valve actuators
- Easy mounting directly on the shaft of the drive
- Non-contact and self-cleaning system
- Indication of valve position by coloured direction indicators
Application
| Design | for mechanical interfaces to pneumatic actuators or manually-operated valves VDI / VDE 3845, ISO 5211 / DIN 3337 |
|---|
Mechanical data
| Weight [g] | 60.9 |
|---|---|
| Target puck diameter [mm] | 65 |
| Hole spacing [mm] | 80 |
| Shaft height of valve drive [mm] | 30 |
| Number of possible switching flag positions | 3 |
| Materials | target puck: PA 6 black; screws: stainless steel (1.4302) |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E17327-01 — 01.08.2017 —
