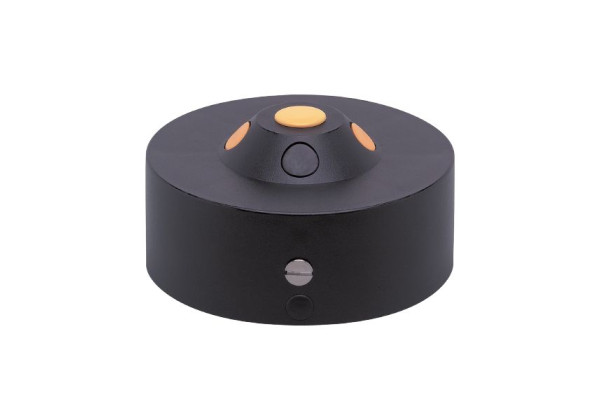

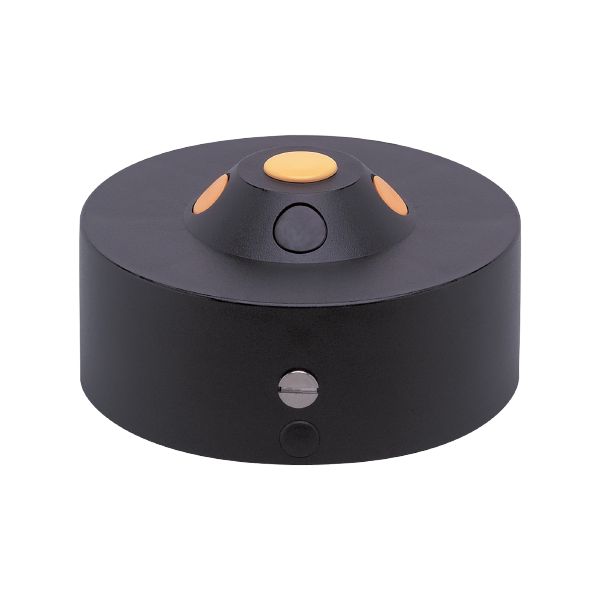

E17329 - efector180-PUCK/IND/BK/102/08
Brand: IFM Electronic
Code: E17329
- For monitoring valve positions
- For reliable position feedback on valve actuators
- Easy mounting directly on the shaft of the drive
- Non-contact and self-cleaning system
- Selectable position of the damping screws
Application
| Design | for mechanical interfaces to pneumatic actuators or manually-operated valves VDI / VDE 3845, ISO 5211 / DIN 3337 |
|---|
Mechanical data
| Weight [g] | 98 |
|---|---|
| Target puck diameter [mm] | 102 |
| Hole spacing [mm] | 130 |
| Shaft height of valve drive [mm] | 30 |
| Number of possible switching flag positions | 8 |
| Materials | target puck: PA 6 black; screws: stainless steel (1.4302) |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E17329-01 — 07.01.2014 —
