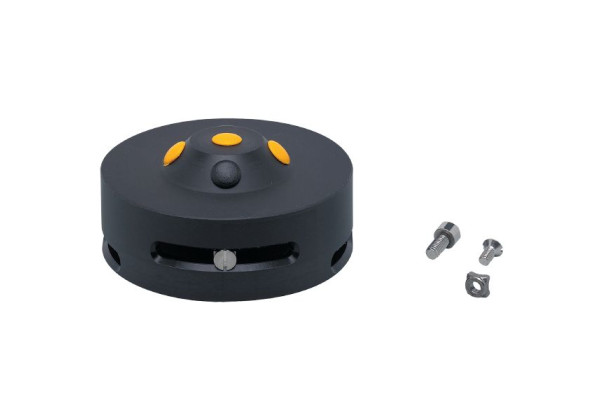

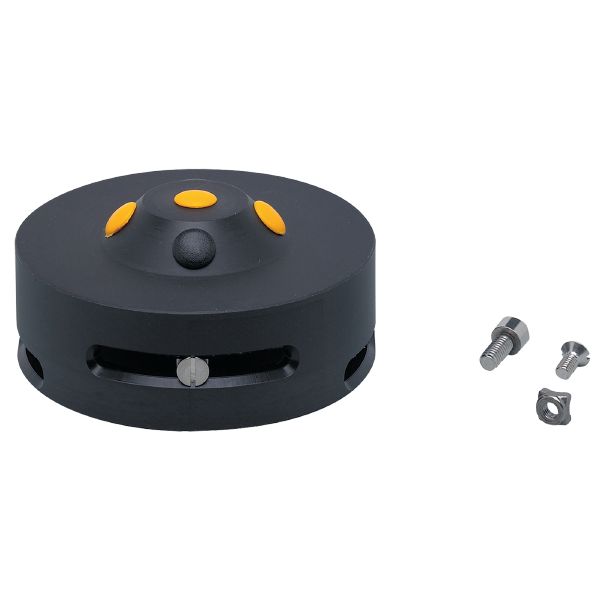

E17337 - efector180-Puck d=102mm
Brand: IFM Electronic
Code: E17337
- For monitoring valve positions
- For reliable position feedback on valve actuators
- Easy mounting directly on the shaft of the drive
- Non-contact and self-cleaning system
- Selectable position of the damping screws
Application
| Design | for mechanical interfaces to pneumatic actuators or manually-operated valves VDI / VDE 3845, ISO 5211 / DIN 3337 |
|---|
Mechanical data
| Weight [g] | 187.2 |
|---|---|
| Target puck diameter [mm] | 102 |
| Hole spacing [mm] | 130 |
| Shaft height of valve drive [mm] | 30 |
| Materials | target puck: PVC black; screws: stainless steel (1.4571/316Ti ) |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E17337-00 — 06.03.2003 —
