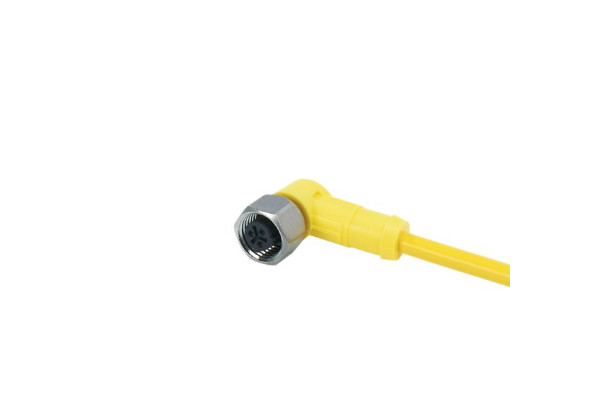

E18211 - ecomat400-PRISE 1/2″CF3p25mPVC/DAIRY
Brand: IFM Electronic
Code: E18211
- Angled type for use where space is restricted
- Gold-plated contacts for reliable electrical connections
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | < 300 AC/DC |
|---|
Operating conditions
| Ambient temperature [°C] | -10...100 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 987 |
|---|---|
| Dimensions [mm] | 31 x 14.5 x 31 |
| Materials | PVC |
| Moulded-body material | PVC |
| Material nut | stainless steel (1.4571/316Ti ) |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 25 m, PVC, yellow; 3 x 0.34 mm² / AWG 22 |
Electrical connection - socket
| Connection | Connector: 1 x 1/2", angled; coding: C; Moulded body: PVC; Locking: stainless steel (1.4571/316Ti ); Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E18211-00 — 15.03.2017 —
