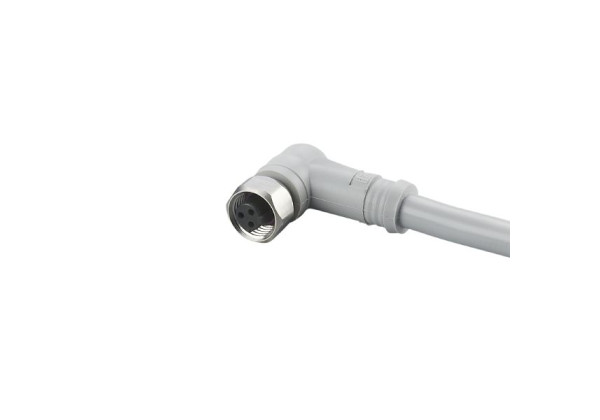

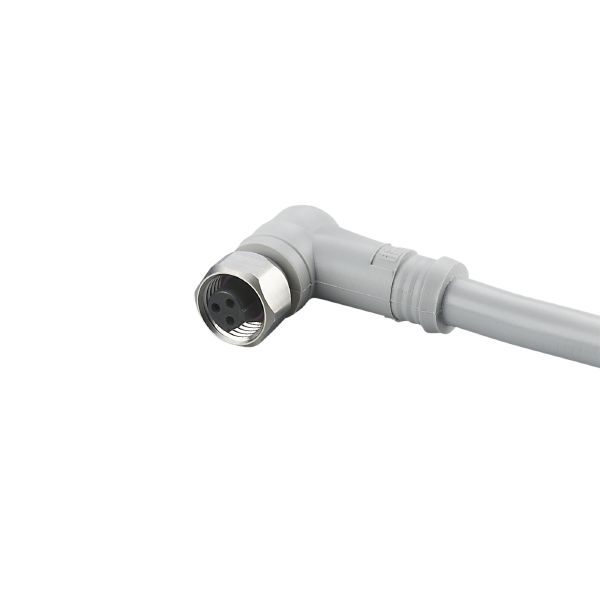

E18235 - ecomat400-ADOAA030VAAS0010E03
Brand: IFM Electronic
Code: E18235
- Angled type for use where space is restricted
- Gold-plated contacts for reliable electrical connections
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | < 300 AC/DC |
|---|
Operating conditions
| Ambient temperature [°C] | -20...105 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 971.5 |
|---|---|
| Materials | PVC |
| Moulded-body material | PVC |
| Material nut | stainless steel (1.4571/316Ti ) |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 10 m, PVC, grey; 3 x 0.75 mm² / AWG 18 |
Electrical connection - socket
| Connection | Connector: 1 x 1/2", angled; coding: C; Moulded body: PVC; Locking: stainless steel (1.4571/316Ti ); Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E18235-00 — 06.11.2017 —
