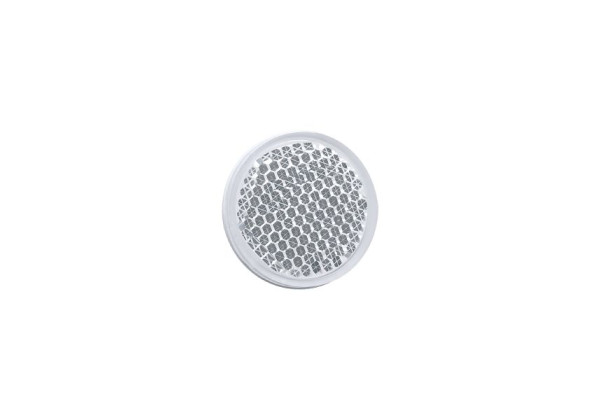

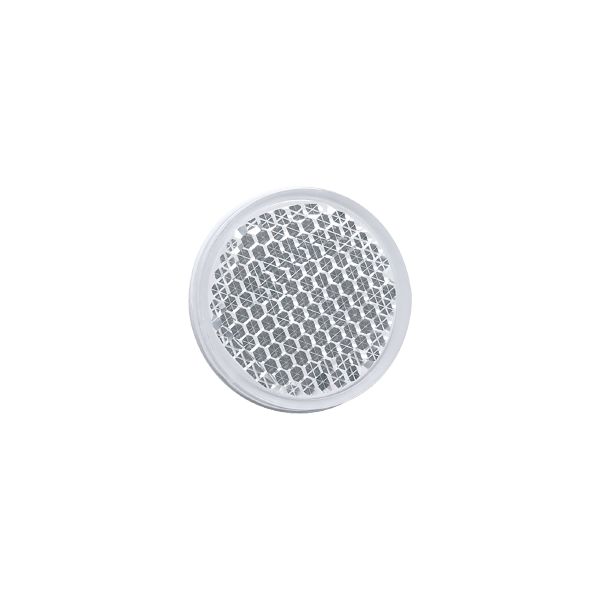

E20004 - efector200-REFLECTOR TS-40
Brand: IFM Electronic
Code: E20004
- For the reliable operation of retro-reflective sensors
- Easy to mount by means of gluing
- Suitable for red light and infrared light
Application
| Design | round, for red light and infrared light retro-reflective sensors |
|---|---|
| Installation | sticking to a surface |
Operating conditions
| Ambient temperature [°C] | -10...60 |
|---|
Mechanical data
| Weight [g] | 7.4 |
|---|---|
| Dimensions [mm] | Ø 42 / L = 6 |
| Reflector surface [mm] | Ø 35 |
| Materials | plastics |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20004-01 — 16.08.2010 —
