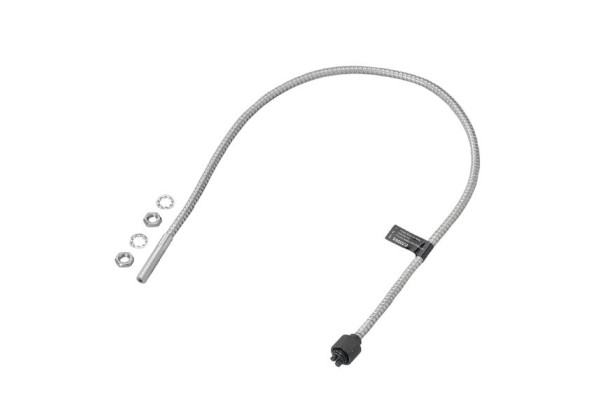

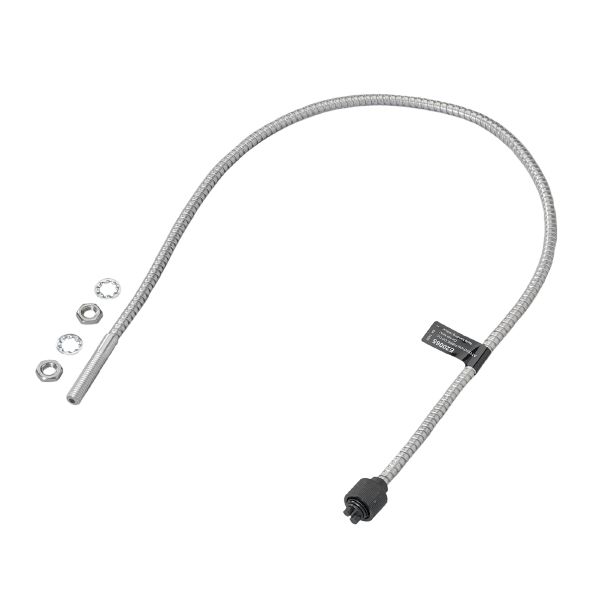

E20065 - efector200-FT-00-APA-M6/S 0,5M
Brand: IFM Electronic
Code: E20065
- For installation in places where access is difficult
- Operation as diffuse reflection sensor
- Robust design for use in harsh industrial environments
- Resistant to various aggressive chemicals
- Small bending radius
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | For use in industrial environments; Robust design for use in harsh industrial environments |
Detection zone
| Range with fibre optic amplifier type | OCF; OKF; OOF; OUF |
|---|
| Range fibre optics [mm] | 320 |
|---|
| Range fibre optics [mm] | 20 |
|---|
| Range fibre optics [mm] | 220 |
|---|
| Range fibre optics [mm] | 20 |
|---|
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|
Mechanical data
| Weight [g] | 42 |
|---|---|
| Version of sensing head | straight |
| Sensing head thread | M6 |
| Sensing head length [mm] | 35 |
| Total length [mm] | 500 |
| Min. bending radius [mm] | 20; (for fixed installation) |
| Fibre arrangement | |
| Materials | Adapter: ABS |
| Fibre material | PMMA |
| Fibre head material | aluminium |
| Fibre sheath material | aluminium |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20065-00 — 20.09.2022 —
