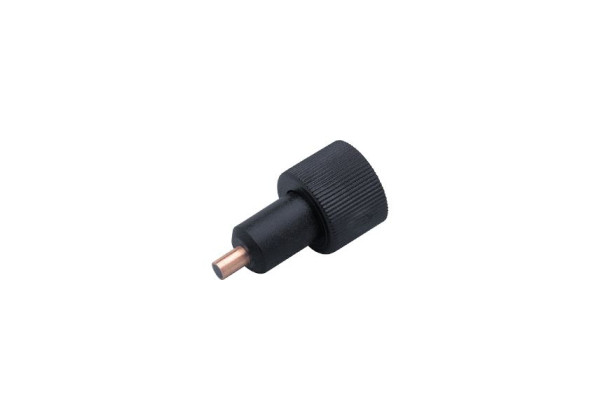

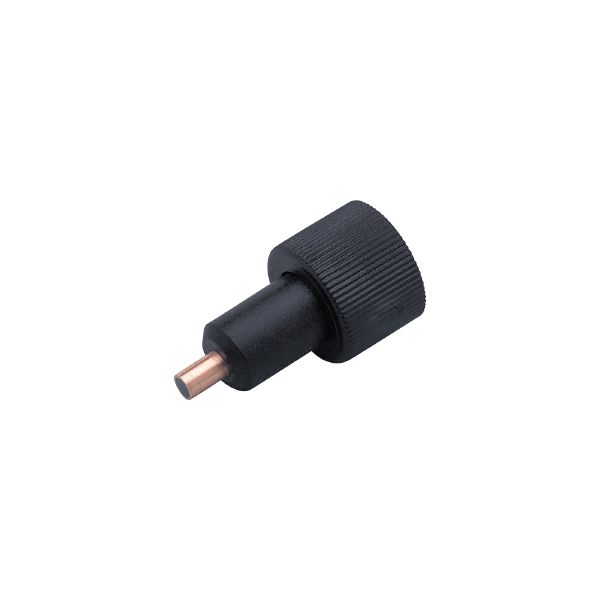

E20078 - efector200-FT-00-M-E3
Brand: IFM Electronic
Code: E20078
- For installation in places where access is difficult
- Operation as diffuse reflection sensor
- For use at short range
- Resistant to various aggressive chemicals
- With direct adaptation to the fibre-optic amplifier
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | For use in industrial environments |
Detection zone
| Range with fibre optic amplifier type | OCF; OKF; OUF |
|---|
| Range fibre optics [mm] | 360 |
|---|
| Range fibre optics [mm] | 40 |
|---|
| Range fibre optics [mm] | 40 |
|---|
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|
Mechanical data
| Weight [g] | 12.5 |
|---|---|
| Version of sensing head | straight |
| Sensing head diameter [mm] | 3 |
| Total length [mm] | 26 |
| Fibre arrangement | |
| Fibre material | glass |
| Fibre head material | brass |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20078-00 — 20.09.2022 —
