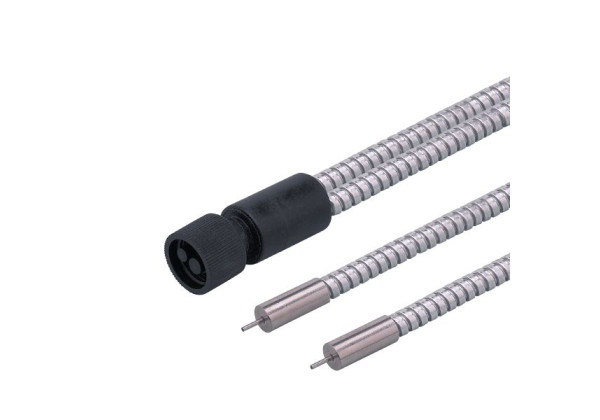

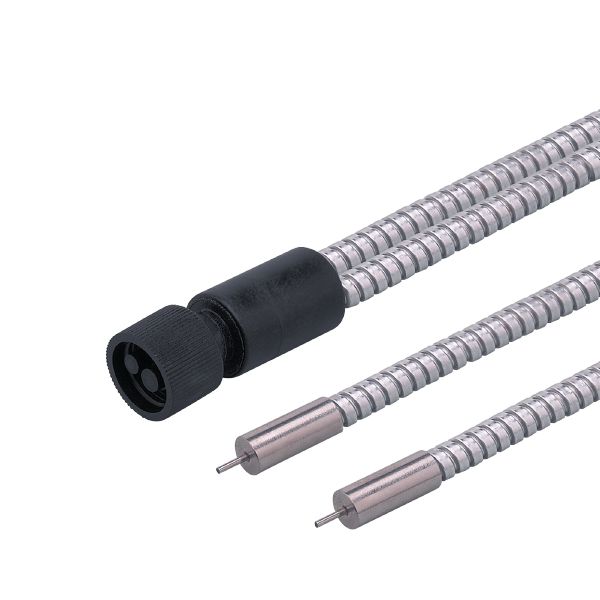

E20127 - efector200-FE-00-A-V-E1
Brand: IFM Electronic
Code: E20127
- For applications in high-temperature areas
- Aluminium sheathing for use up to 290 °C
- Installation in places where access is difficult
- Reliable detection of tiny objects
- Small bending radius
Application
| Function principle | Through-beam sensor |
|---|---|
| Application | High temperature resistance; Robust design for use in harsh industrial environments |
Detection zone
| Range with fibre-optic amplifier type | OCF; OKF; OOF; OUF |
|---|
| Range of fibre optics [mm] | 460 |
|---|
| Range of fibre optics [mm] | 50 |
|---|
| Range of fibre optics [mm] | 160 |
|---|
| Range of fibre optics [mm] | 50 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...290 |
|---|
Mechanical data
| Weight [g] | 69 |
|---|---|
| Version of sensing head | straight |
| Sensing head diameter [mm] | 1 |
| Sensing head length [mm] | 5 |
| Total length [mm] | 600 |
| Min. bending radius [mm] | 20; (for fixed installation) |
| Fibre arrangement | |
| Materials | Adapter: ABS |
| Fibre material | glass |
| Fibre head material | stainless steel (1.4305 / 303) |
| Fibre sheath material | aluminium |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20127-00 — 22.09.2022 —
