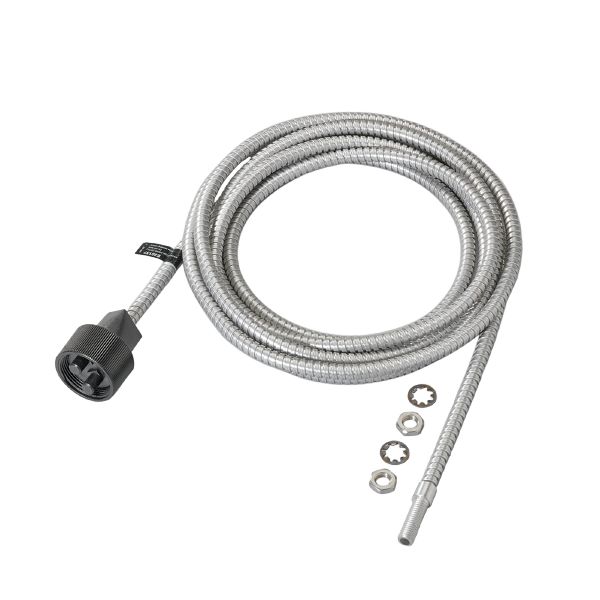

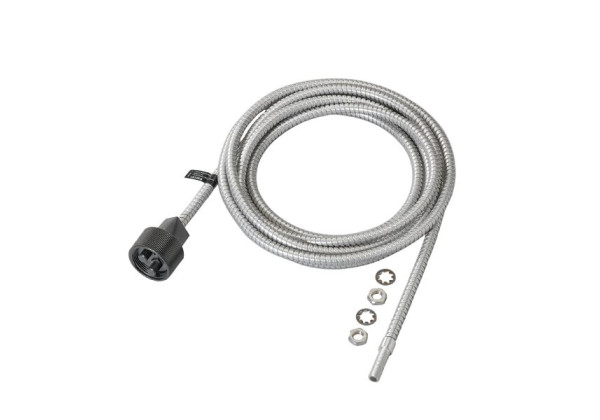

E20137 - efector200-FT-30-A-A-M8/3M
Brand: IFM Electronic
Code: E20137
- For applications in high-temperature areas
- Aluminium sheathing for use up to 290 °C
- For use at short range
- Resistant to various aggressive chemicals
- Small bending radius
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | High temperature resistance; Robust design for use in harsh industrial environments |
Detection zone
| Range with fibre optic amplifier type | OIF |
|---|
| Range fibre optics [mm] | 45 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...290 |
|---|
Mechanical data
| Weight [g] | 239.7 |
|---|---|
| Version of sensing head | straight |
| Sensing head thread | M8 |
| Total length [mm] | 3000 |
| Min. bending radius [mm] | 30; (for fixed installation) |
| Fibre arrangement | |
| Materials | Adapter: PA |
| Fibre material | glass |
| Fibre head material | aluminium |
| Fibre sheath material | aluminium |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20137-00 — 06.03.2003 —
