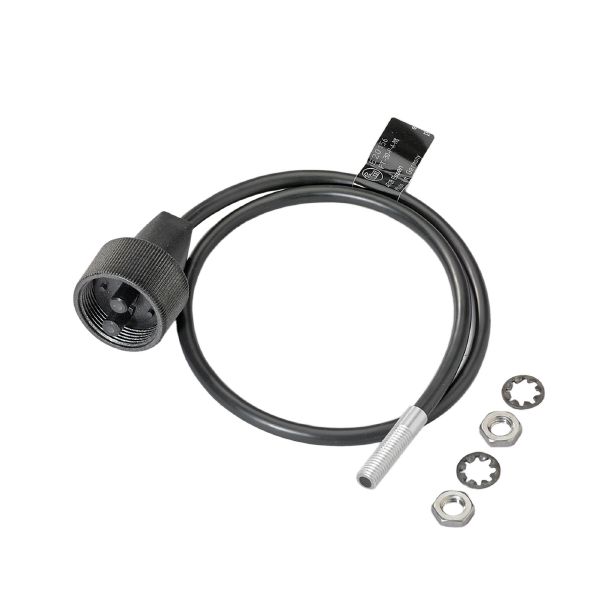

E20156 - efector200-FT-30-P-A-M8
Brand: IFM Electronic
Code: E20156
- For installation in places where access is difficult
- Operation as diffuse reflection sensor
- Long range
- Resistant to various aggressive chemicals
- Small bending radius
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | For use in industrial environments |
Detection zone
| Range with fibre optic amplifier type | OIF |
|---|
| Range fibre optics [mm] | 70 |
|---|
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|
Mechanical data
| Weight [g] | 93 |
|---|---|
| Version of sensing head | straight |
| Sensing head thread | M8 |
| Total length [mm] | 600 |
| Min. bending radius [mm] | 30 |
| Fibre arrangement | |
| Materials | Adapter: PA |
| Fibre material | glass |
| Fibre head material | aluminium |
| Fibre sheath material | PVC |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20156-00 — 06.03.2003 —
