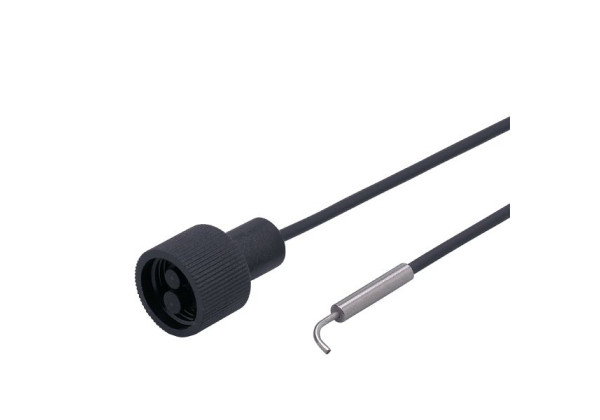

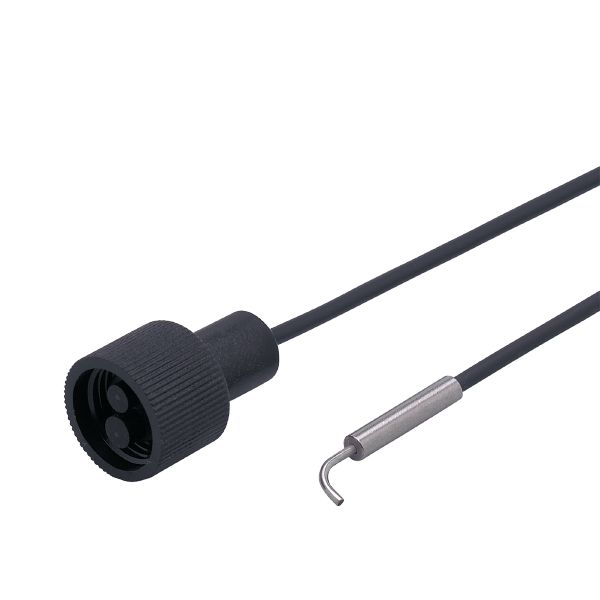

E20230 - efector200-FT-00-P-V-R1
Brand: IFM Electronic
Code: E20230
- For installation in places where access is difficult
- Operation as diffuse reflection sensor
- For use at short range
- Angled type for use where space is restricted
- Small bending radius
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | For use in industrial environments |
Detection zone
| Range with fibre optic amplifier type | OCF; OKF; OOF; OUF |
|---|
| Range fibre optics [mm] | 40 |
|---|
| Range fibre optics [mm] | 6 |
|---|
| Range fibre optics [mm] | 24 |
|---|
| Range fibre optics [mm] | 6 |
|---|
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|
Mechanical data
| Weight [g] | 37 |
|---|---|
| Version of sensing head | angled |
| Sensing head diameter [mm] | 1 |
| Total length [mm] | 600 |
| Min. bending radius [mm] | 20 |
| Fibre arrangement | |
| Fibre material | glass |
| Fibre head material | stainless steel (1.4301 / 304) |
| Fibre sheath material | PVC |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20230-00 — 20.09.2022 —
