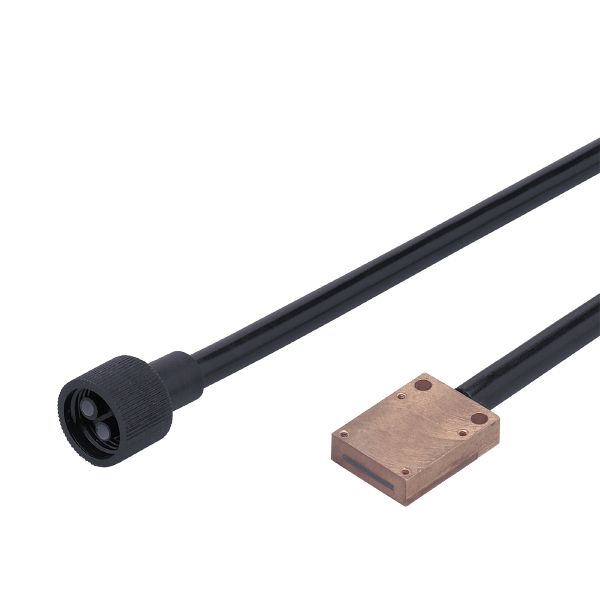

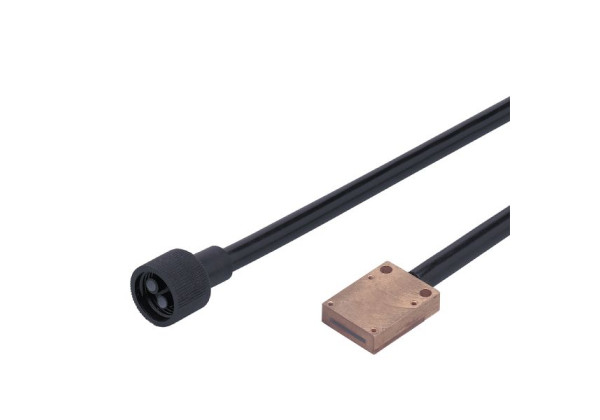

E20249 - efector200-FT-00-P-MS
Brand: IFM Electronic
Code: E20249
- For installation in places where access is difficult
- Operation as diffuse reflection sensor
- Long range
- With cross-section converter for the reliable detection of objects with changing positions
- Small bending radius
Application
| Design | Cross section converter |
|---|---|
| Function principle | Diffuse reflection sensor |
| Application | For use in industrial environments |
Detection zone
| Range with fibre optic amplifier type | OCF; OKF; OOF; OUF |
|---|
| Range fibre optics [mm] | 420 |
|---|
| Range fibre optics [mm] | 40 |
|---|
| Range fibre optics [mm] | 200 |
|---|
| Range fibre optics [mm] | 40 |
|---|
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|
Mechanical data
| Weight [g] | 60 |
|---|---|
| Version of sensing head | straight |
| Sensing head height [mm] | 5 |
| Sensing head width [mm] | 15 |
| Sensing head length [mm] | 20 |
| Probe dimensions [mm] | 5 x 15 x 20 |
| Total length [mm] | 600 |
| Min. bending radius [mm] | 20 |
| Fibre arrangement | |
| Fibre material | glass |
| Fibre head material | brass |
| Fibre sheath material | PVC |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20249-00 — 20.09.2022 —
