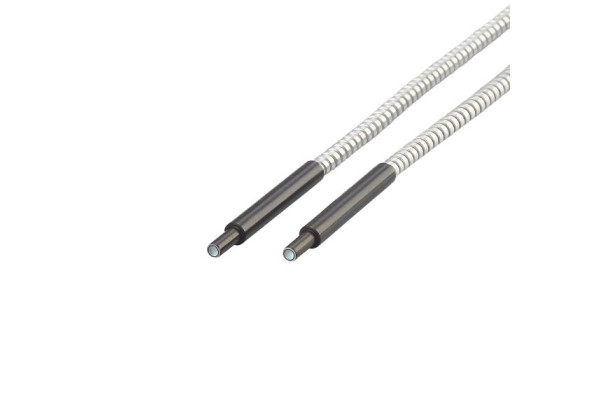

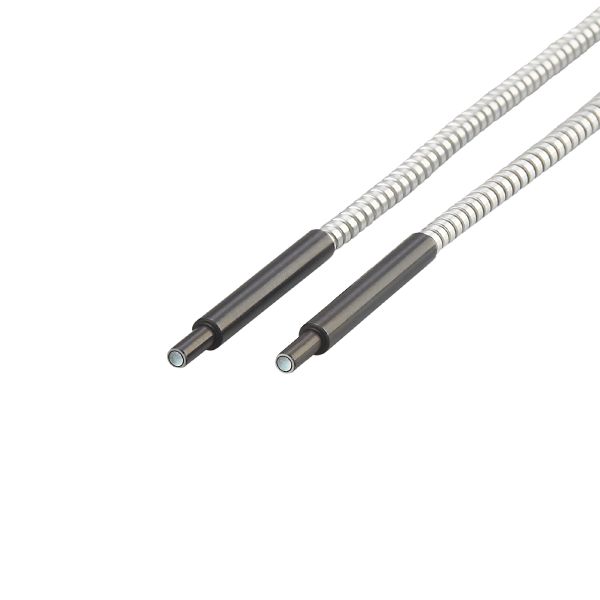

E20421 Fibre optic diffuse reflection sensor FIBRE OPTIC INFRA SENSOR
Brand: IFM Electronic
Code: E20421
- Angled type for use where space is restricted
- Resistant to various aggressive chemicals
- Aluminium sheathing for use in harsh industrial environments
- For applications in high-temperature areas
- Operation as diffuse reflection sensor
Application
| Application | High temperature resistance; Robust design for use in harsh industrial environments |
|---|
Detection zone
| Angle of aperture cylindrical [°] | 68 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...290 |
|---|
Mechanical data
| Weight [g] | 81 |
|---|---|
| Version of sensing head | straight |
| Total length [mm] | 1800 |
| Min. bending radius [mm] | 30; (for fixed installation) |
| Fibre arrangement | |
| Fibre material | glass |
| Fibre head material | aluminium |
| Fibre sheath material | aluminium |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20421-00 — 06.03.2003 —
