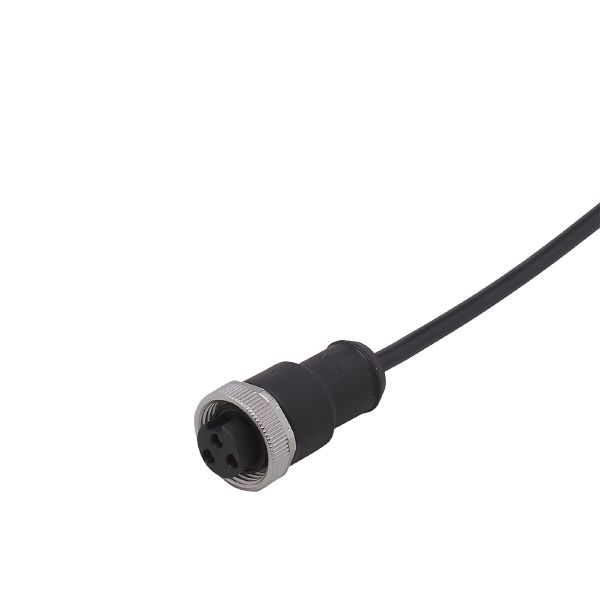

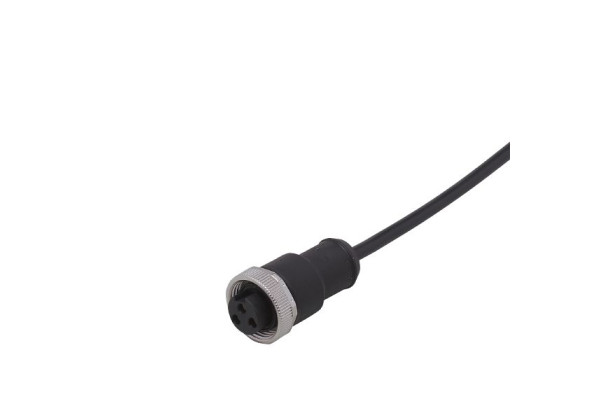

E20430 - ecomat400-ADOGB030PLS0002E03
Brand: IFM Electronic
Code: E20430
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Electrical data
| Operating voltage [V] | < 300 AC/DC |
|---|
Operating conditions
| Ambient temperature [°C] | -30...80 |
|---|---|
| Ambient temperature (moving) [°C] | -5...80 |
| Protection | IP 68 |
Mechanical data
| Weight [g] | 117.5 |
|---|---|
| Dimensions [mm] | 26 x 26 x 49.9 |
| Moulded-body material | TPU |
| Material nut | diecast zinc |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 2 m, PVC, black, Ø 5.4 mm; 3 x 0.5 mm² |
Electrical connection - socket
| Connection | Connector: 1 x 7/8", straight; Moulded body: TPU; Locking: diecast zinc |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20430-02 — 03.12.2021 —
