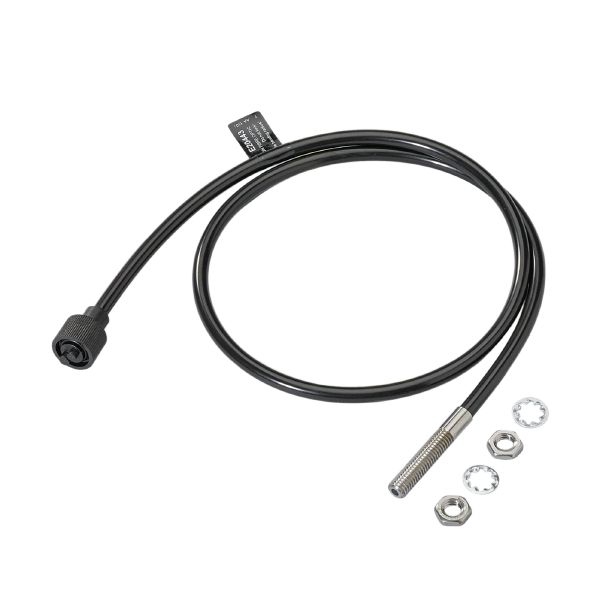

E20443 - efector200-FT-00-PPV-M6
Brand: IFM Electronic
Code: E20443
- For installation in places where access is difficult
- Operation as diffuse reflection sensor
- For use at short range
- Very small bending radius
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | Small bending radius |
Detection zone
| Range with fibre optic amplifier type | OKF; OUF; OOF |
|---|
| Range fibre optics [mm] | 20 |
|---|
| Range fibre optics [mm] | 220 |
|---|
| Range fibre optics [mm] | 20 |
|---|
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|
Mechanical data
| Weight [g] | 48 |
|---|---|
| Version of sensing head | straight |
| Sensing head thread | M6 |
| Sensing head length [mm] | 35 |
| Total length [mm] | 600 |
| Min. bending radius [mm] | 10 |
| Fibre arrangement | |
| Materials | Adapter: ABS |
| Fibre material | PMMA |
| Fibre head material | stainless steel (1.4305 / 303) |
| Fibre sheath material | PU |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20443-00 — 06.03.2003 —
