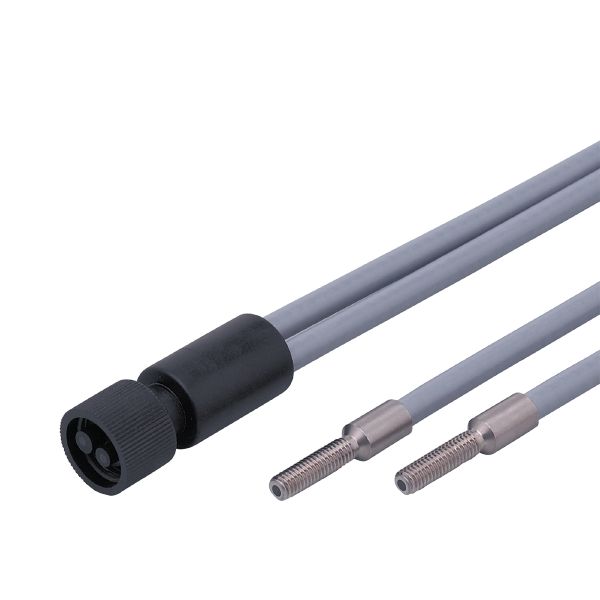

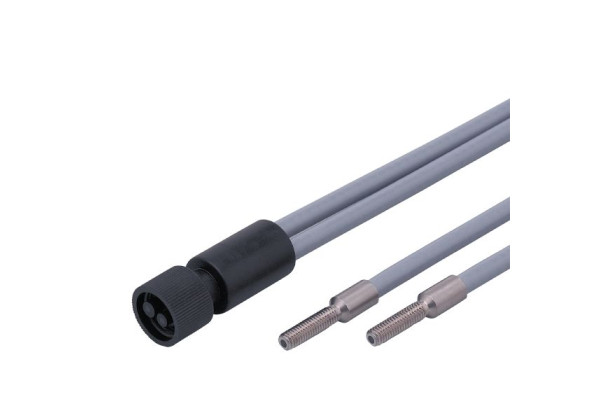

E20505 Fibre optic through-beam sensor FE-00-M-V-M4
Brand: IFM Electronic
Code: E20505
- For applications in high-temperature areas
- Metal silicone sheathing for use up to 150 °C
- For installation in places where access is difficult
- Resistant to various aggressive chemicals
- Small bending radius
Application
| Function principle | Through-beam sensor |
|---|---|
| Application | High temperature resistance; Robust design for use in harsh industrial environments; Resistant to various aggressive chemicals |
Detection zone
| Range with fibre-optic amplifier type | OCF; OKF; OOF; OUF |
|---|
| Range of fibre optics [mm] | 1200 |
|---|
| Range of fibre optics [mm] | 120 |
|---|
| Range of fibre optics [mm] | 400 |
|---|
| Range of fibre optics [mm] | 120 |
|---|
Operating conditions
| Ambient temperature [°C] | -20...150 |
|---|
Mechanical data
| Weight [g] | 68 |
|---|---|
| Version of sensing head | straight |
| Sensing head thread | M4 |
| Sensing head length [mm] | 15 |
| Total length [mm] | 600 |
| Min. bending radius [mm] | 20 |
| Fibre arrangement | |
| Fibre material | glass |
| Fibre head material | stainless steel (1.4305 / 303) |
| Fibre sheath material | metal silicone |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
