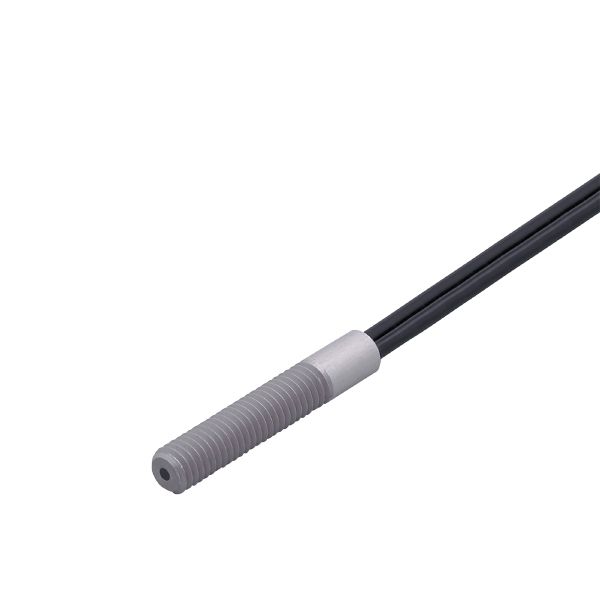

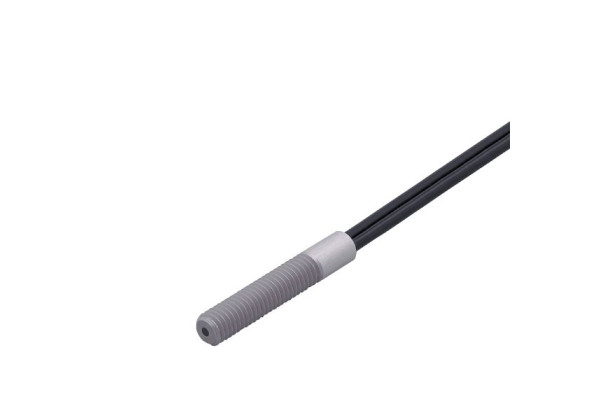

E20654 Fibre optic diffuse reflection sensor FT-11-EPA-M6/F1X1+16X0,265/2M
Brand: IFM Electronic
Code: E20654
- For installation in places where access is difficult
- Operation as diffuse reflection sensor
- For use at short range
- For cutting to size
- Small bending radius
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | For use in industrial environments |
Detection zone
| Range with fibre optic amplifier type | OB50; OBF; OCF; OO50 |
|---|
| Range fibre optics [mm] | 60 |
|---|
| Range fibre optics [mm] | 90 |
|---|
| Range fibre optics [mm] | 570 |
|---|
| Range fibre optics [mm] | 300 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...70 |
|---|
Mechanical data
| Weight [g] | 48.5 |
|---|---|
| Version of sensing head | straight |
| Sensing head thread | M6 |
| Sensing head length [mm] | 35 |
| Total length [mm] | 2000 |
| Min. bending radius [mm] | 30 |
| Fibre arrangement | |
| Core diameter [mm] | 1 x 1 + 16 x 0.25 |
| Fibre material | PMMA |
| Fibre head material | aluminium |
| Fibre sheath material | PE |
Accessories
| Items supplied |
| ||
|---|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20654-00 — 18.08.2022 —
