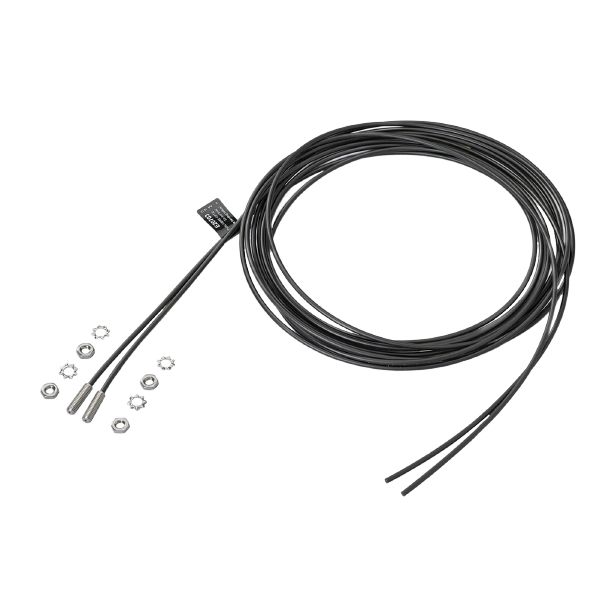

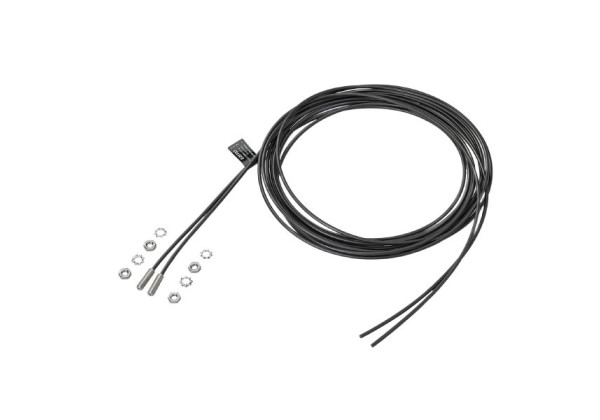

E20703 - efector200-FE-11-EPV-M4/F1X1/2M
Brand: IFM Electronic
Code: E20703
- For installation in places where access is difficult
- Operation as through-beam sensor
- Long range
- For cutting to size
- Small bending radius
Application
| Function principle | Through-beam sensor |
|---|---|
| Application | For use in industrial environments |
Detection zone
| Range with fibre-optic amplifier type | OB50; OBF; OCF; OO50 |
|---|
| Range of fibre optics [mm] | 200 |
|---|
| Range of fibre optics [mm] | 450 |
|---|
| Range of fibre optics [mm] | 2770 |
|---|
| Range of fibre optics [mm] | 800 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...70 |
|---|
Mechanical data
| Weight [g] | 51 |
|---|---|
| Version of sensing head | straight |
| Sensing head thread | M4 |
| Sensing head length [mm] | 15 |
| Total length [mm] | 2000 |
| Min. bending radius [mm] | 30 |
| Fibre arrangement | |
| Core diameter [mm] | 1 |
| Fibre material | PMMA |
| Fibre head material | stainless steel (1.4301 / 304) |
| Fibre sheath material | PE |
Accessories
| Items supplied |
| ||
|---|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20703-00 — 23.08.2022 —
