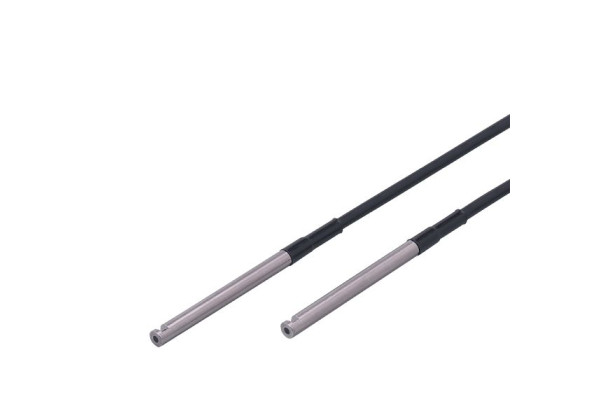

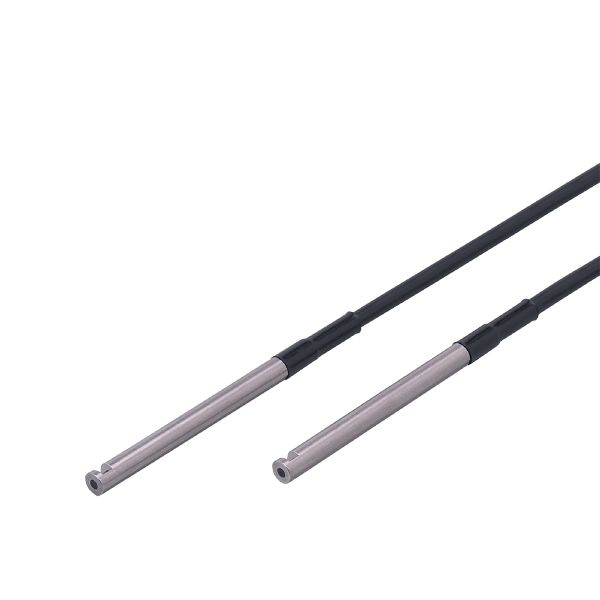

E20714 - efector200-FE-11-E-V-E3R/2m
Brand: IFM Electronic
Code: E20714
- For installation in places where access is difficult
- Operation as through-beam sensor
- With 90° deflection of the light beam for use where space is restricted
- For cutting to size
- Small bending radius
Application
| Design | 90° deflection of the light beam |
|---|---|
| Function principle | Through-beam sensor |
| Application | For use in industrial environments |
Detection zone
| Range with fibre-optic amplifier type | OB50; OBF; OCF; OO50 |
|---|
| Range of fibre optics [mm] | 140 |
|---|
| Range of fibre optics [mm] | 230 |
|---|
| Range of fibre optics [mm] | 1720 |
|---|
| Range of fibre optics [mm] | 400 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...70 |
|---|
Mechanical data
| Weight [g] | 58.5 |
|---|---|
| Version of sensing head | angled |
| Sensing head diameter [mm] | 3 |
| Total length [mm] | 2000 |
| Min. bending radius [mm] | 25 |
| Fibre arrangement | |
| Fibre material | PMMA |
| Fibre head material | stainless steel (1.4305 / 303) |
| Fibre sheath material | PE |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20714-00 — 23.08.2022 —
