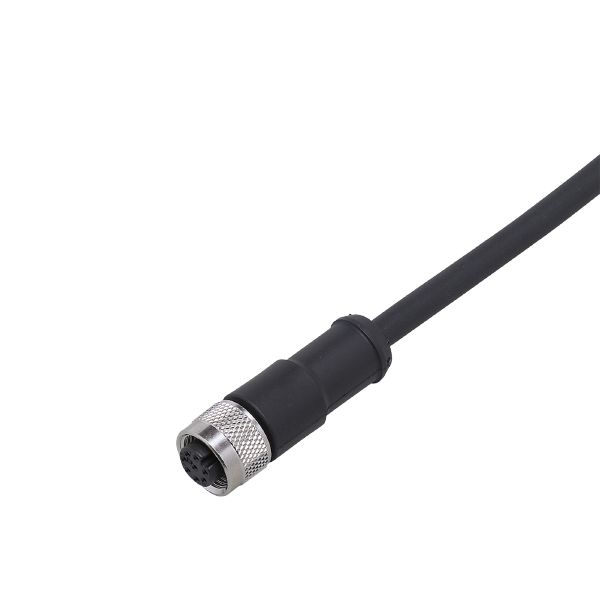

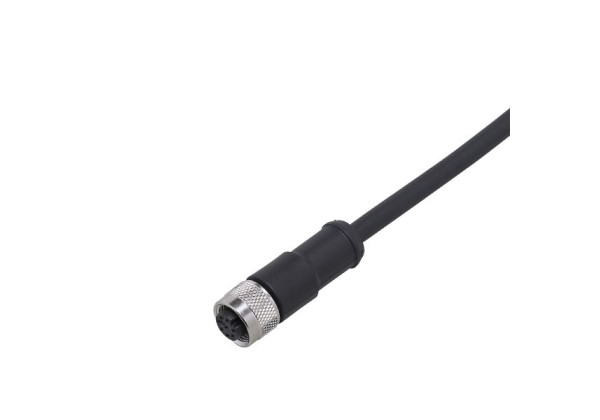

E20738 - ecomat400-ADOGH080MSS0002B08
Brand: IFM Electronic
Code: E20738
- 8-pole connection
- High protection rating for the requirements of harsh industrial environments
- Reliable transmission of the sensor signals
- Wide operating temperature range
Application
| Special feature | Screened cable |
|---|
Electrical data
| Operating voltage [V] | < 60 AC/DC |
|---|
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 125.5 |
|---|---|
| Dimensions [mm] | 14.5 x 14.5 x 43.9 |
| Materials | TPU |
| Moulded-body material | TPU |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 2 m, PUR, black, shielded; 7 x 0.25 mm² (14 x Ø 0.15 mm ) |
Electrical connection - socket
| Connection | Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: diecast zinc, nickel-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20738-01 — 16.06.2010 —
