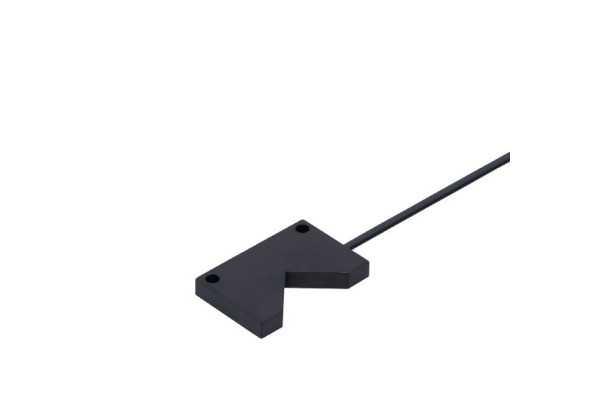

E20756 - efector200-FT-11-EPA-Q-/F2x1/2M
Brand: IFM Electronic
Code: E20756
- For installation in places where access is difficult
- Operation as diffuse reflection sensor
- For use at short range
- Reliable background suppression
- Very small bending radius
Application
| Special feature | Background suppression |
|---|---|
| Function principle | Diffuse reflection sensor |
| Application | Small bending radius |
Detection zone
| Range with fibre optic amplifier type | OB50; OBF; OCF |
|---|---|
| Background suppression available | yes |
| Range fibre optics [mm] | 6 |
|---|
| Range fibre optics [mm] | 10 |
|---|
| Range fibre optics [mm] | 20 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...70 |
|---|
Mechanical data
| Weight [g] | 54 |
|---|---|
| Sensing head height [mm] | 5 |
| Sensing head width [mm] | 35 |
| Sensing head length [mm] | 23 |
| Probe dimensions [mm] | 5 x 35 x 23 |
| Total length [mm] | 2000 |
| Min. bending radius [mm] | 10 |
| Fibre arrangement | |
| Core diameter [mm] | 2 x 1 |
| Fibre material | PMMA |
| Fibre head material | aluminium |
| Fibre sheath material | PE |
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20756-00 — 18.08.2022 —
