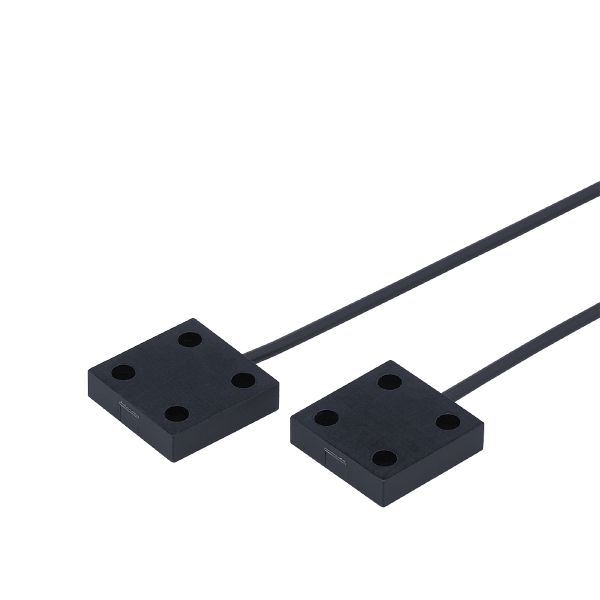

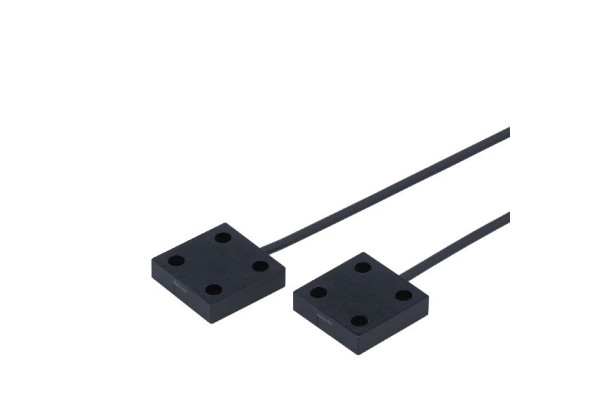

E20757 - efector200-FE-11-EPA-Q-/F16X0,265
Brand: IFM Electronic
Code: E20757
- For installation in places where access is difficult
- Operation as through-beam sensor
- With cross-section converter for the reliable detection of objects with changing positions
- For cutting to size
- Small bending radius
Application
| Design | Cross section converter |
|---|---|
| Function principle | Through-beam sensor |
| Application | Small bending radius |
Detection zone
| Range with fibre-optic amplifier type | OB50; OBF; OCF; OO50 |
|---|
| Range of fibre optics [mm] | 150 |
|---|
| Range of fibre optics [mm] | 300 |
|---|
| Range of fibre optics [mm] | 2040 |
|---|
| Range of fibre optics [mm] | 700 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...70 |
|---|
Mechanical data
| Weight [g] | 61 |
|---|---|
| Sensing head height [mm] | 5 |
| Sensing head width [mm] | 20 |
| Sensing head length [mm] | 20 |
| Probe dimensions [mm] | 5 x 20 x 20 |
| Total length [mm] | 2000 |
| Min. bending radius [mm] | 9 |
| Fibre arrangement | |
| Core diameter [mm] | 16 x 0.25 |
| Fibre material | PMMA |
| Fibre head material | aluminium |
| Fibre sheath material | PE |
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20757-00 — 23.08.2022 —
