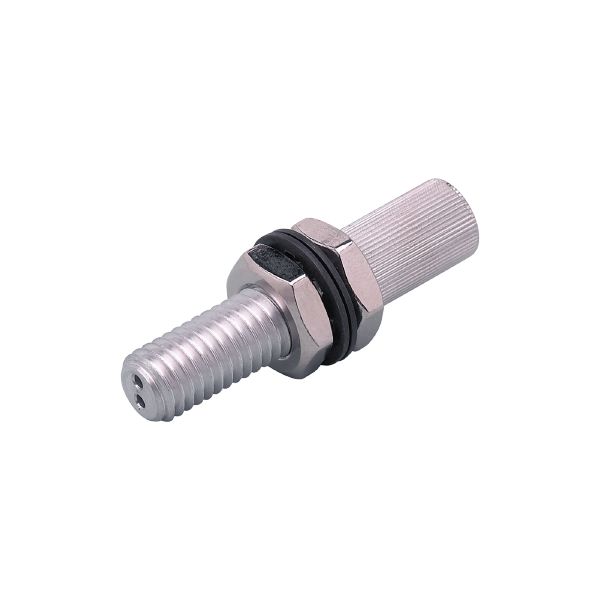

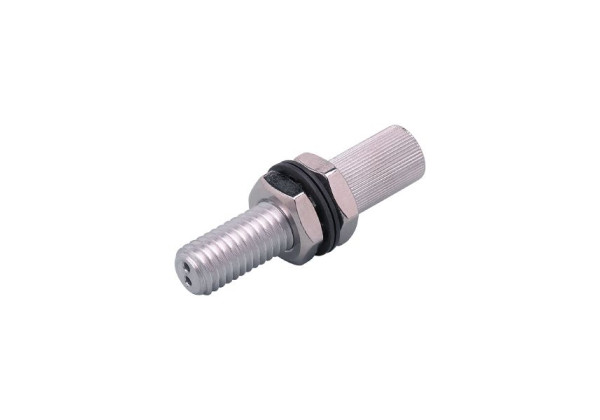

E20765 Sensing head for fibre optic diffuse reflection sensor FT-11-EPA-M8x40/F2x1
Brand: IFM Electronic
Code: E20765
- For installation in places where access is difficult
- Operation as diffuse reflection sensor
- For use at short range
- Wirable sensing head for the connection of fibre optics supplied on a reel
- Quick and easy mounting of fibre optics
Application
| Function principle | Diffuse reflection sensor |
|---|
Detection zone
| Range with fibre optic amplifier type | OB50; OBF; OO50 |
|---|
| Range fibre optics [mm] | 55 |
|---|
| Range fibre optics [mm] | 110 |
|---|
| Range fibre optics [mm] | 235 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...70 |
|---|
Mechanical data
| Weight [g] | 16.2 |
|---|---|
| Version of sensing head | straight |
| Sensing head thread | M8 |
| Total length [mm] | wirable |
| Fibre arrangement | |
| Core diameter [mm] | 2 x 1.5 |
| Materials | housing: brass white bronze coated |
| Fibre material | PMMA |
| Fibre head material | aluminium |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20765-00 — 09.06.2009 —
