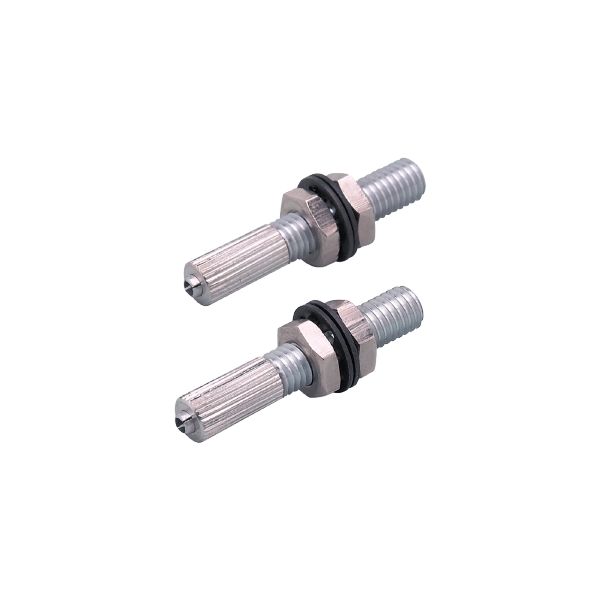

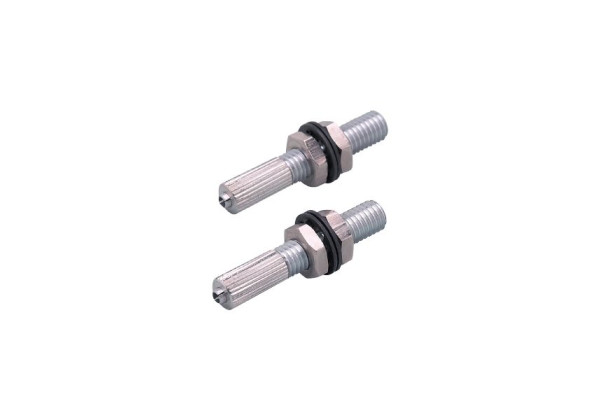

E20767 Sensing head for fibre optic through-beam sensor FE-11-EPA-M5x30/F1x1
Brand: IFM Electronic
Code: E20767
- For installation in places where access is difficult
- Operation as through-beam sensor
- Long range
- Wirable sensing head for the connection of fibre optics supplied on a reel
- Quick and easy mounting of fibre optics
Application
| Function principle | Through-beam sensor |
|---|---|
| Application | Small bending radius |
Detection zone
| Range with fibre-optic amplifier type | OB50; OBF; OO50 |
|---|
| Range of fibre optics [mm] | 175 |
|---|
| Range of fibre optics [mm] | 370 |
|---|
| Range of fibre optics [mm] | 700 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...70 |
|---|
Mechanical data
| Weight [g] | 10.5 |
|---|---|
| Version of sensing head | straight |
| Sensing head thread | M5 |
| Total length [mm] | wirable |
| Fibre arrangement | |
| Materials | housing: brass white bronze coated |
| Fibre material | PMMA |
| Fibre head material | aluminium |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20767-00 — 11.11.2010 —
