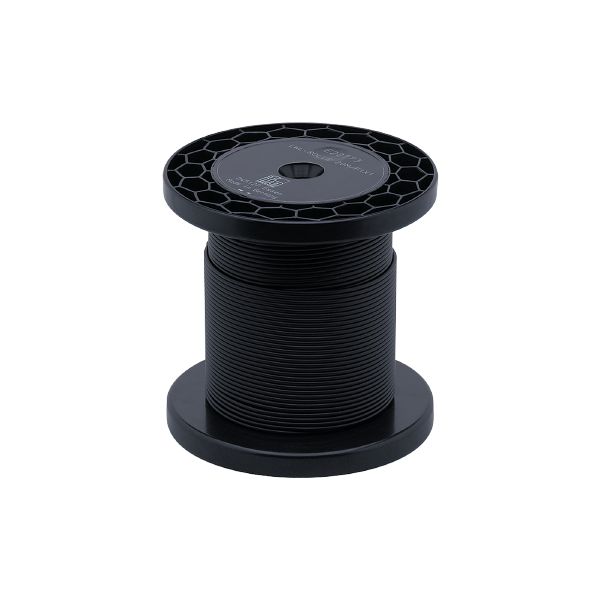

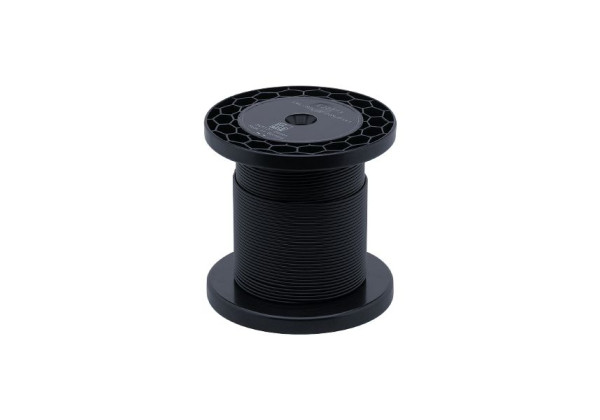

E20773 - efector200-ACRYLIC FIBRES ON REEL 20 M
Brand: IFM Electronic
Code: E20773
- For installation in places where access is difficult
- Operation as through-beam sensor or diffuse reflection sensor
- On reel for cutting to size
- Small bending radius
Operating conditions
| Ambient temperature [°C] | -30...70 |
|---|
Mechanical data
| Weight [g] | 335.1 |
|---|---|
| Total length [mm] | 20000; (wirable) |
| Min. bending radius [mm] | 30 |
| Fibre arrangement | |
| Fibre diameter [mm] | 1 |
| External diameter [mm] | 2.2 |
| Fibre material | PMMA |
| Fibre sheath material | PE |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20773-01 — 19.08.2010 —
